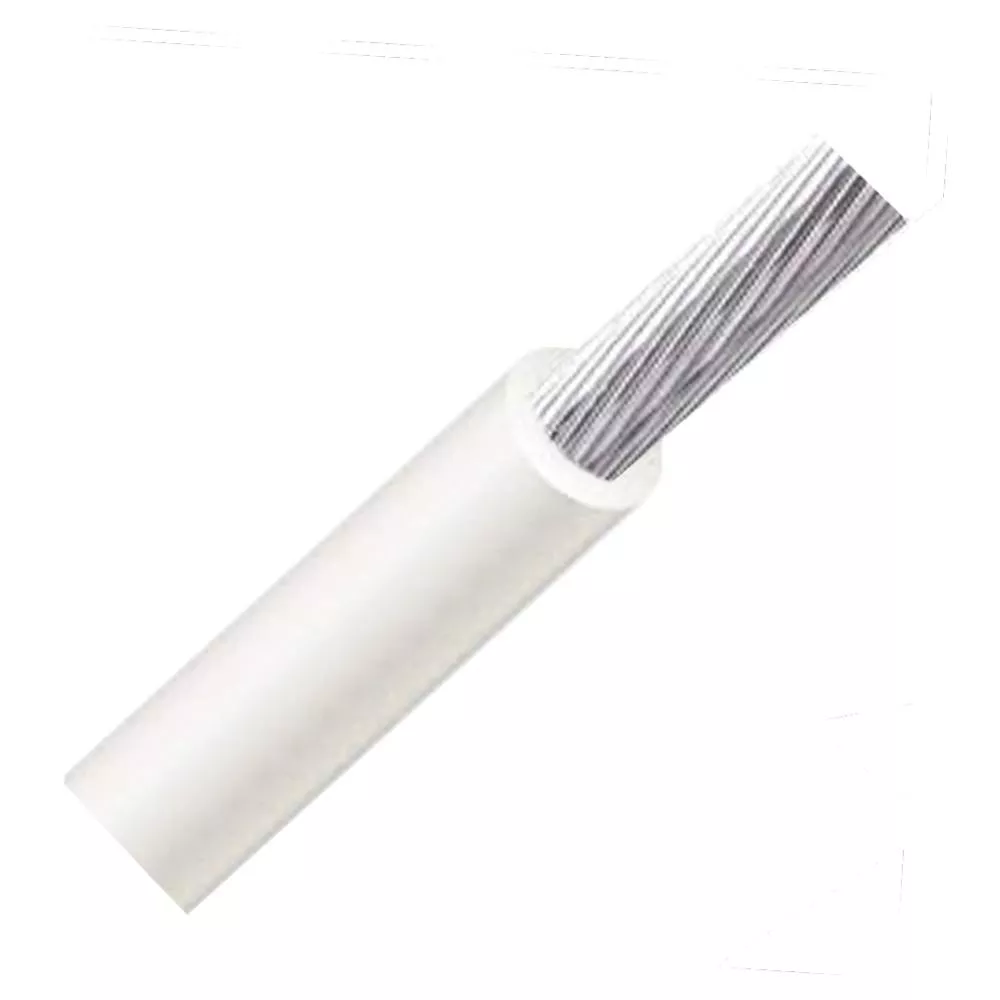

RW90 High Speed (HS) XLPE, Low-Voltage Power 600V, CSA Type RW90, Single Conductor, Aluminum. 8 AWG thru 2 AWG Class B compact stranded aluminum alloy (8000 Series) per ASTM B800 and ASTM B801. 1 AWG thru 350 kcmil compact stranded SIW aluminum alloy (8000 Series) per ASTM B800, ASTM B801 and ASTM B836. 400 kcmil thru 1000 kcmil Class B compact stranded aluminum alloy (8000 Series) per ASTM B800 and ASTM B801. Rated 90°C wet and dry locations. UV/sunlight-resistant, moisture-resistant and flame-retardant insulation in all colors. Meets cold bend and cold impact tests at -40°C. Excellent electrical, thermal and physical properties. Resistant to crush, compression cuts and heat deformation. Rated for direct burial. High Speed (HS) cable features a specially designed XLPE insulation that allows for fast and easy cable pulls.
Specifications
| Brand Name | Priority Wire & Cable | Item Name | RW90 Building Wire |
| Type | Class B, High Speed | Wire Gauge Size | 1/0 AWG |
| Stranded/Solid | Stranded | Number of Strands | 18 |
| Conductor Material | Aluminum | Insulation Material | Polyethylene |
| Voltage Rating | 600 VAC | Outside Diameter | 0.449 in |
| Insulation Thickness | 0.055 in | Amperage Rating | 135 A at 90 °C |
| Color Code | White | Weight | 440 lb/km |
| Weight per 1000 Foot | 440 lb | Temperature Rating | -40 to 90 °C |
| Standards | ASTM Standards B 800, B 801, cUL 44 Listed, CSA 22.2 No.38 Certified | Application | For Power Distribution |
