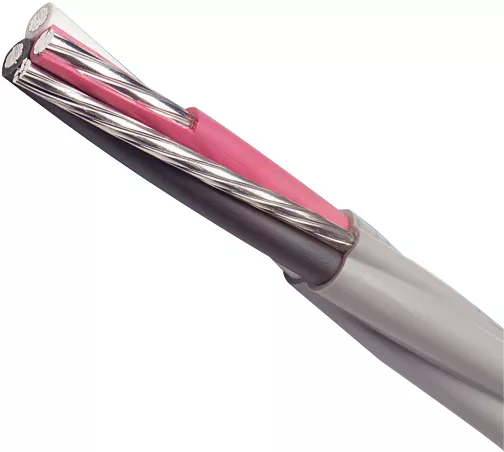

NMD90 are for open or concealed wiring in dry or damp locations where not exposed to mechanical damage. Compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM conductors. Abrasion, heat and moisture resistant cross-linked polyethylene insulation (XLP). The 3 conductors are cabled together with a bare 8000 series compact aluminum ground. Phase conductors are color coded: black, red and white. PVC poly-vinyl chloride jacket, which is sunlight and moisture resistant. Temperature rating +90 to -25 Deg C.
Specifications
| Brand Name | Priority Wire & Cable | Item Name | NMD90 Building Wire |
| Wire Gauge Size | 6 AWG Phase, 8 AWG Bare | Number of Conductors | 3 |
| Length | 150 m | Conductor Material | Aluminum |
| Insulation Material | Cross-Linked Polyethylene | Jacket Material | PVC |
| Voltage Rating | 300 V | Outside Diameter | 16.92 mm |
| Insulation Thickness | 1.14 mm | Amperage Rating | 55 A |
| Color Code | Black/Red/White | Weight | 909 lb/km |
| Temperature Rating | -25 to 90 °C | Standards | Requirements of the Canadian Electrical Code, ASTM Standards B 800, B 801, CSA 22.2 No. 48-09, Sunlight-Resistant, FT1 |
| Application | For Open or Concealed Wiring in Dry or Damp Locations Where Not Exposed to Mechanical Damage |
