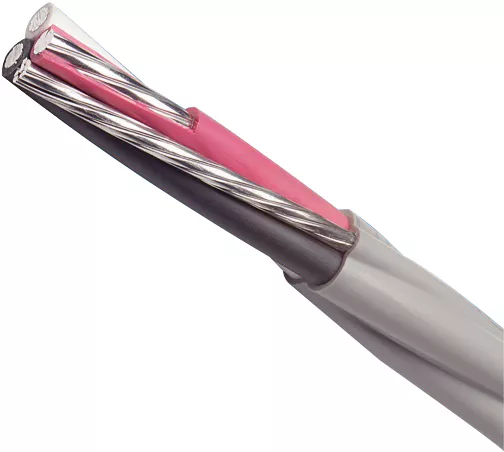

NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations. The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C for two-conductor cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be properly stored above 0°C for 24 hours prior to installation. The maximum voltage rating for all intended applications is 300 volts. Southwire’s Romex® SIMpull ® NMD90 cables are available as two- or three-conductor cables with a bare grounding conductor. It is manufactured using annealed (soft) copper conductors—compressed standing for stranded conductors; a heat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction.
Specifications
| Brand Name | Southwire | Item Name | NMD90 Building Wire |
| Wire Gauge Size | 2 AWG | Number of Conductors | 3 |
| Stranded/Solid | Stranded | Number of Strands | 6 |
| Length | 984 ft | Conductor Material | Aluminum |
| Insulation Material | PVC | Jacket Material | PVC |
| Jacket Color | Gray | Voltage Rating | 300 V |
| Outside Diameter | 1.067 in | Insulation Thickness | 50 mil |
| Jacket Thickness | 80 mil | Weight per 1000 Foot | 214 lb |
| Temperature Rating | -10 °C | Standards | ASTM B3, ASTM B8, ASTM B787, ASTM B787 19, CSA C22.2 No. 48, ICEA S-95-658 (NEMA WC70), IEEE 1202/FT4 Flame Test |
| Application | For Both Exposed Work in Dry Locations or Concealed Work in Dry or Damp Locations |
