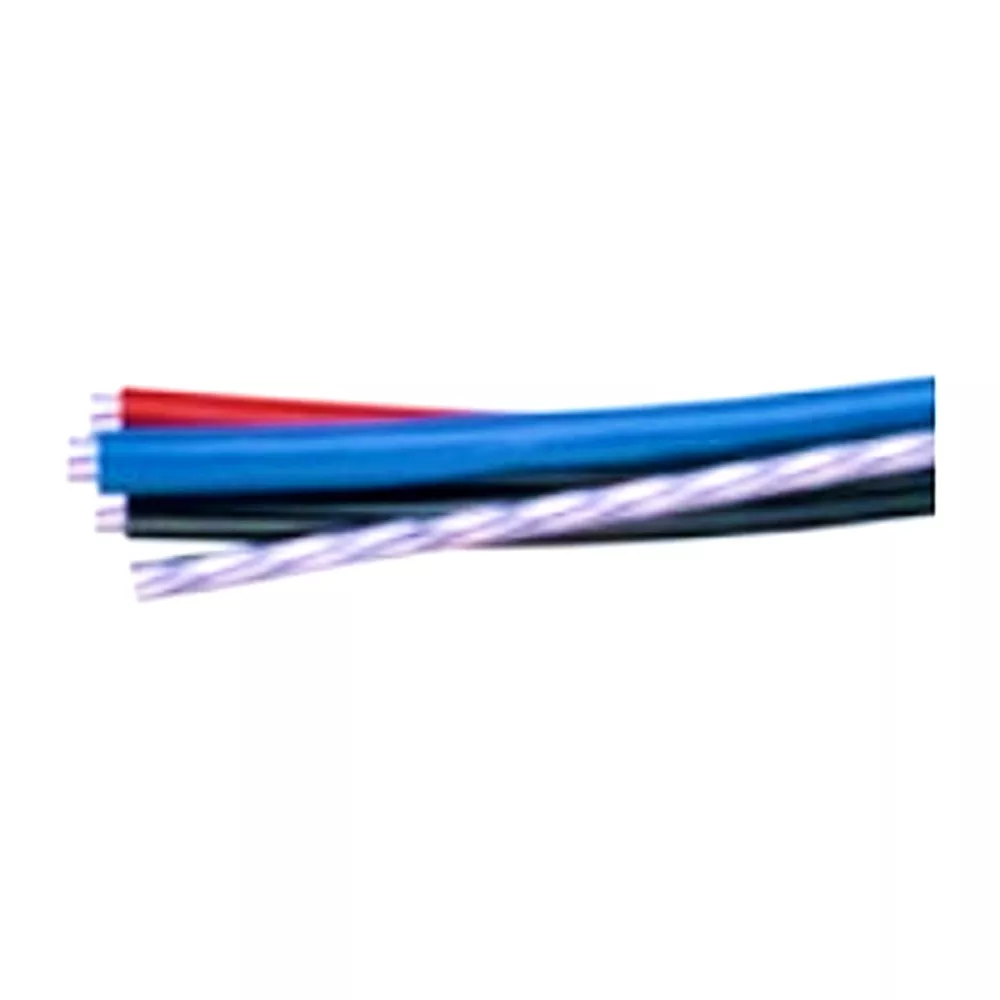

Quadruplex neutral supported cables consist of an assembly of three insulated phase conductors factory cabled around a neutral conductor. The neutral conductor is the supporting member. The conductors are insulated with polyethylene (PE) rated 75 °C or cross linked polyethylene (XLPE) rated 90 °C. Neutral supported cables are intended for use either as a service drop cable between a power pole and the service entrance, or as a secondary distribution cable between poles. Their use is limited to circuits not exceeding 600 volts phase-to-phase. Quadruplex service drop cable is intended to deliver three-phase power from the secondary power line or pole-mounted transformer to the service entrance conductors at the user’s building or other structure. Optional construction includes an insulated control/supply conductor.
Specifications
| Brand Name | Emerson | Item Name | Underground Distribution Cable |
| Wire Gauge Size | 2 AWG | Conductor Material | Aluminum |
| Insulation Material | XLPE | Voltage Rating | 600 V |
