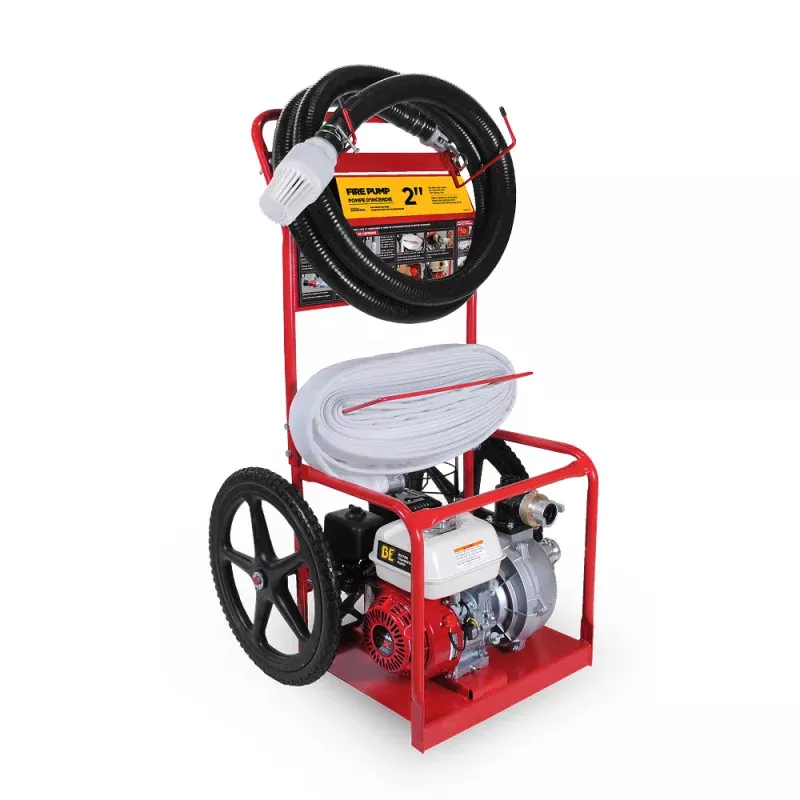

High-Pressure Water Spray Kit on Portable Cart
This firefighting-style high-pressure pump kit includes the hoses and accessories required to set up and operate a mobile water spray system capable of projecting water up to 80 ft with the included attachments. Mounted on a wheeled cart, this unit is designed for fast deployment, easy transport, and dependable performance where distance and pressure are critical.
Powered by a commercial-grade Honda GX200 engine (196cc), this pump delivers an excellent weight-to-power ratio and is engineered for all-day, everyday operation. Known for legendary reliability and long service life, the GX200 provides consistent output in demanding field conditions.
The high-pressure aluminum impeller pump displaces water like a standard transfer pump while also generating the pressure needed for spray applications using the supplied fire hose and nozzles. This dual-function design makes it well suited for long-reach water delivery and controlled spray output.
A powder-coated steel tilt-back frame with wheels allows a single operator to easily move, position, and deploy the system. The cart design provides stability during operation while protecting the pump and engine from jobsite abuse.
WARNING: This unit is not certified for firefighting or direct fire-line attack.
Actual product may vary slightly from images shown on the website.
Kit Includes
-
12 ft Suction Hose
-
50 ft Fire Hose
-
Fire Hose Nozzle(s)
Key Features
-
High-Pressure Spray Capability Projects water up to 80 ft with included attachments
-
Honda GX200 Engine (196cc) Commercial reliability with excellent fuel efficiency
-
Aluminum Impeller Pump Supports high-pressure spray and water transfer
-
Portable Tilt-Back Cart with Wheels Easy transport and quick setup
-
Powder-Coated Steel Frame Durable, jobsite-ready construction
-
Complete Ready-to-Use Kit Includes hoses and spray accessories
Performance Specifications
-
Flow Rate: 126 GPM
-
Maximum Pressure: 85 PSI
-
Suction Lift: 26 ft
-
Discharge Lift: 171 ft
-
Total Lift: 197 ft
Package & Shipping Information
-
Weight: 130 lbs
-
Dimensions (L W H): 30 29 23
-
Shipping Weight & Dimensions: 130 lbs 30 29 23
Warranty
-
Engine: 3 Years
-
Pump: 2 Years
Mobile. Powerful. Ready to Deploy.
This wheeled high-pressure spray pump kit combines trusted Honda engine performance with a portable cart design and complete hose packagedelivering a reliable solution for long-reach water spray and transfer applications where mobility and pressure matter most.
