- Designed for the ‘All-Glass’ Look
- For Use with 1/2″ Tempered Glass
- Made of 316 Alloy Stainless Steel and Available in Brushed Stainless and Polished Stainless Finishes

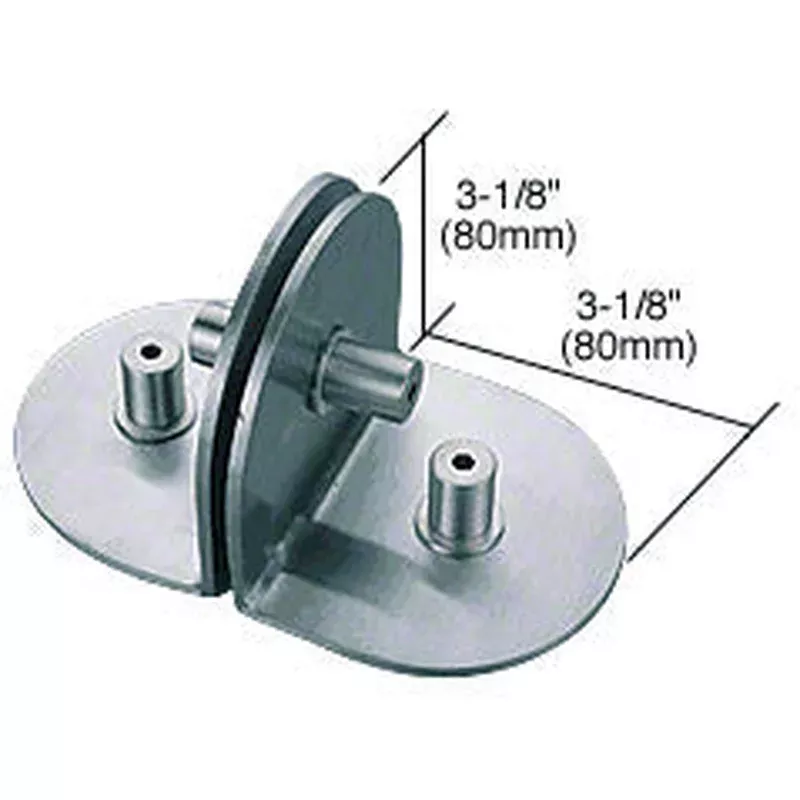

ThisCRL 2-Way Glass/1-Way Wall Circular Bracketis used to link two inline panels of glass to a fin support behind. Used to connect one or two inline panels to a fin support, or when split apart they can be used to connect one panel to a wall. Supplied with two rigid countersunk glass connecting screws and one fin securing bolt.
NOTE:To determine whether Regular-Duty or Heavy-Duty Spider Fittings are needed for your application, please consult local building requirements and a licensed structural engineer.
SPECIFICATIONS:For Use With:1/2″ (12 mm) Tempered GlassGlass Fabrication Required:One Countersunk Hole Per Glass Fastening for Countersunk Screws, or One 15/16″ (23 mm) Standard Hole for Fin Securing BoltTemplates:Available on Request for Each Fitting
Product Warning:
Do not use with annealed or raw glass.
Product Details
-
Finish/Color:
Polished Stainless Steel
-
Glazing Thickness (Inches)
1/2
-
Glazing Type
Tempered Monolithic
-
Load Capacity
Regular
-
Material
Stainless Steel (Alloy 316)
Technical References & CAD Drawings
Cleaning & Maintenance
Stainless Steel Care and Maintenance Guide
