Applications: For exposed and concealed wiring in dry, locations.For use in ventilated, non-ventilated and ladder-type cable trays in dry location.
Specifications
| Brand Name | Prysmian Group | Sub Brand | NUAL® |

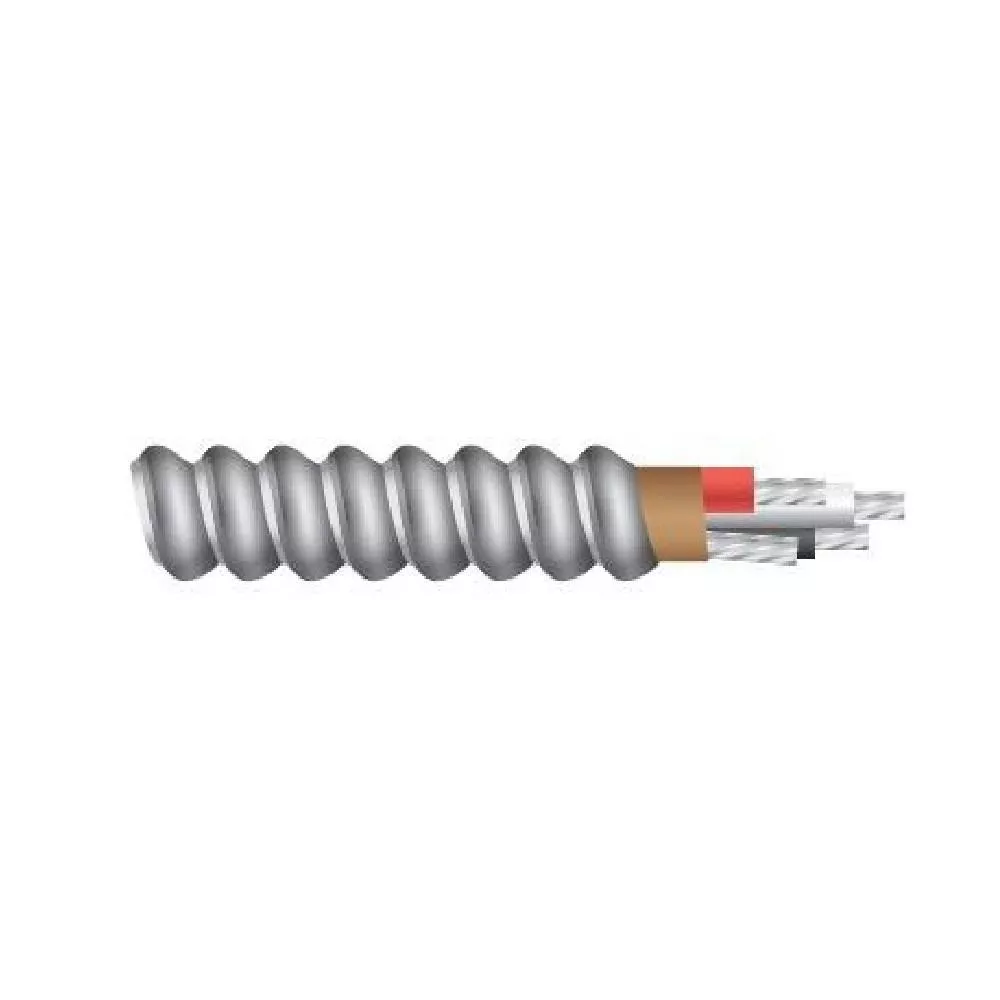

| Item Name | ACWU90 Cable | Type | Armored |
| Wire Gauge Size | 3/0 AWG | Number of Conductors | 3 |
| Stranded/Solid | Stranded | Conductor Material | Aluminum |
| Armor Material | Aluminum | Voltage Rating | 600 V |
| Outside Diameter | 1.44 in | Insulation Material | XLPE |
| Insulation Thickness | 0.06 in | Jacket Material | PVC |
| Jacket Thickness | 0.06 in | Weight | 1383 kg/km |
| Weight per 1000 Foot | 511 lb | Temperature Rating | -40 to 90 °C |
| Standards | ASTM B800/B801/B836, CSA LL28117 Certified, FT-1 and FT-4 Rated, OSHA Certified, RoHS Compliant | Application | For Outdoor (Exposed Locations), In Wet Locations (Type RW90 Conductors), Direct Buried, In Cable Trays, Temporary Power and As Aerial Cable on a Messenger |
