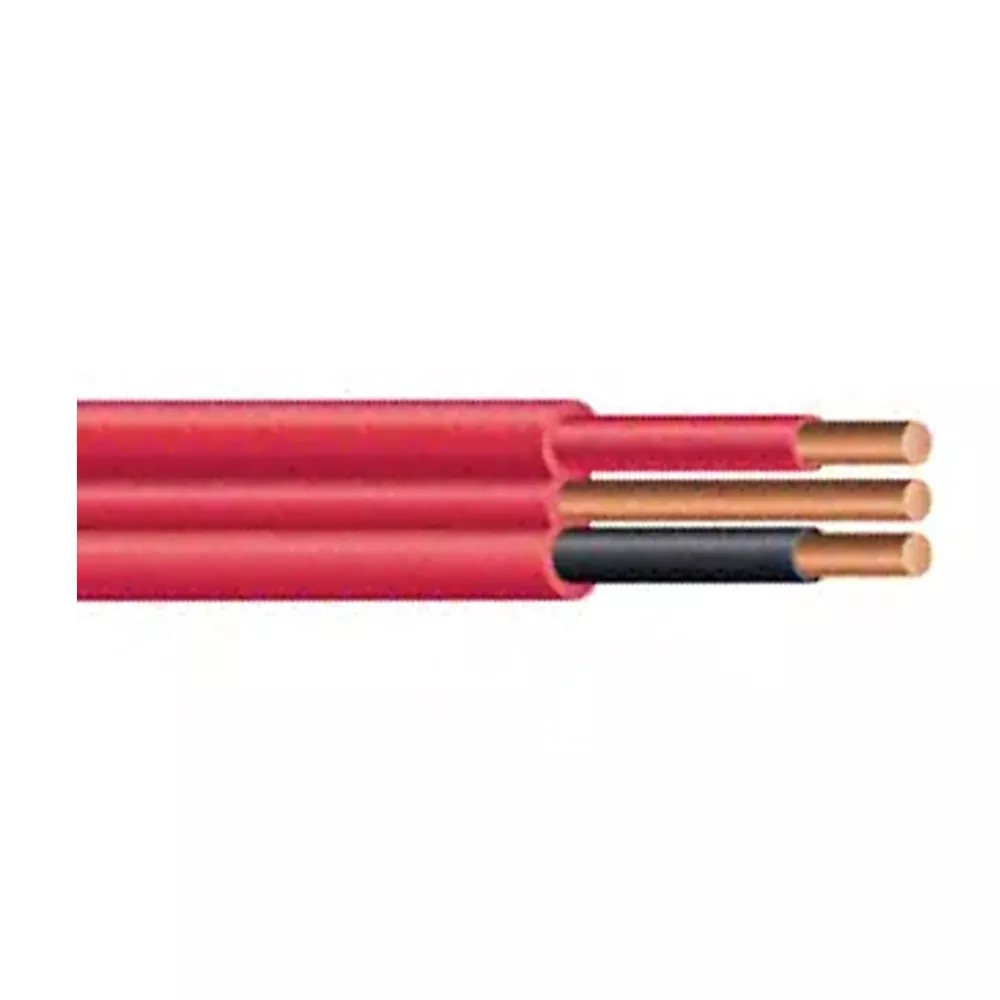

Copper Conductors, 300V/-25 Min, 90 Deg C Max, PVC/Nylon Insulation, PVC Jacket. Two-conductor cable with a bare grounding conductor. It is manufactured using annealed (soft) copper conductors-compressed standing for stranded conductors; a heat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction. Romex® SIMpull ® NMD90 conductors feature SIM Technology jackets which reduces the coefficient of friction, allowing cables to be installed without external lubricants, resulting in reduced labor and materials costs.
Specifications
| Brand Name | Southwire | Sub Brand | Romex® SIMpull® |
| Item Name | NMD90 Building Wire | Wire Gauge Size | 3 AWG |
| Number of Conductors | 2 | Stranded/Solid | Stranded |
| Number of Strands | 7 | Length | 492 ft |
| Conductor Material | Copper | Insulation Material | PVC |
| Jacket Material | PVC | Jacket Color | Red |
| Voltage Rating | 300 V | Outside Diameter | 0.252 in |
| Insulation Thickness | 50 mil | Jacket Thickness | 80 mil |
| Temperature Rating | 90 °C | Standards | CSA Certified |
| Application | For Both Exposed Work in Dry Locations or Concealed Work in Dry or Damp Locations |
