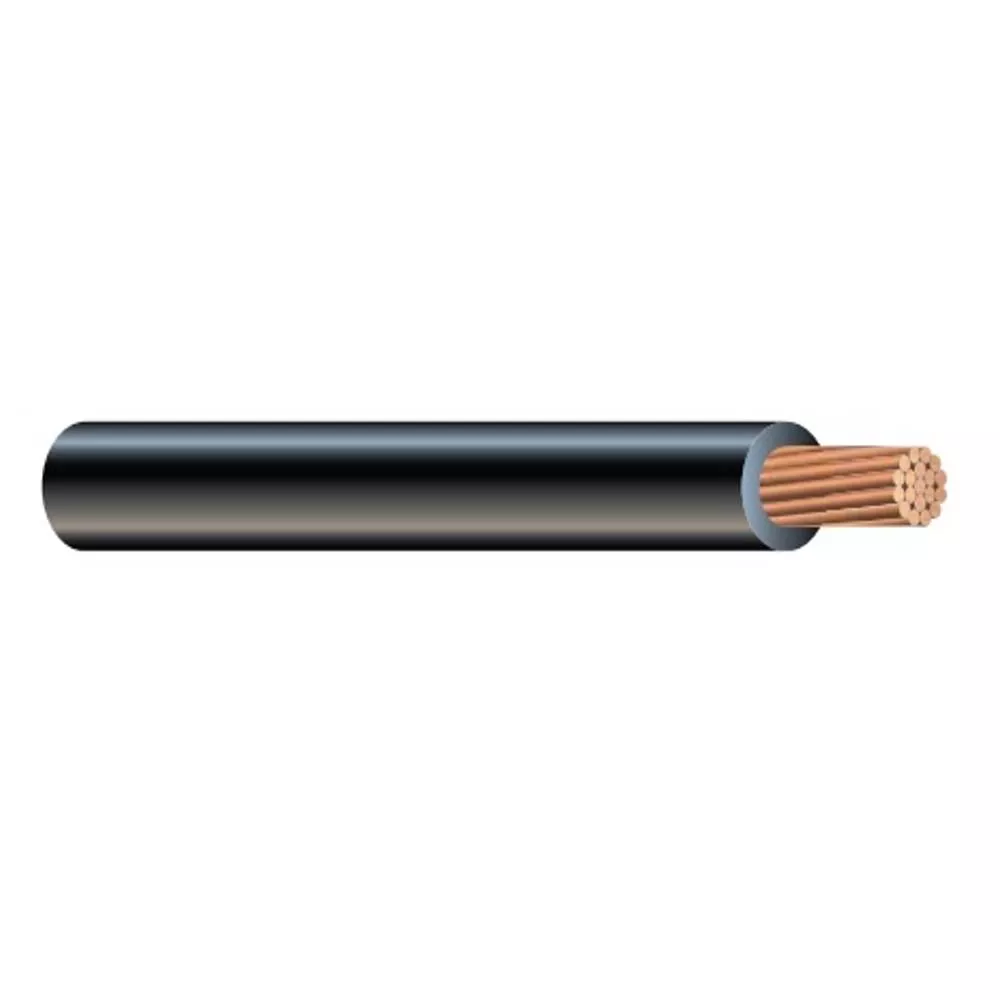

Copper Conductor, 600 V, 90 °C MAX – 40 °C MIN, Cross Linked Polyethylene (XLPE) Single copper conductor with low temperature, moisture resisting XLPE (cross linked polyethylene) insulation. This product meets the current RoHS requirements. No lead is added or used in manufacturing.
Specifications
| Brand Name | Southwire | Sub Brand | SIMpull® |
| Item Name | RW90 Building Wire | Wire Gauge Size | 300 MCM |
| Stranded/Solid | Stranded | Number of Strands | 37 |
| Conductor Material | Copper | Insulation Material | XLPE |
| Jacket Color | Black | Voltage Rating | 600 V |
| Outside Diameter | 0.744 in | Insulation Thickness | 0.065 in |
| Amperage Rating | 445 A at 75 °C, 500 A at 90 °C | Weight per 1000 Foot | 986 lb |
| Temperature Rating | -40 to 90 °C | Standards | CSA Spec. C22.2, No. 38, CSA FT1 – Flame Test Rating, CSA Certified in File Number LL90458, RoHS Compliant |
| Application | For Open Wiring and Use in Raceways in Dry or Wet Locations |
