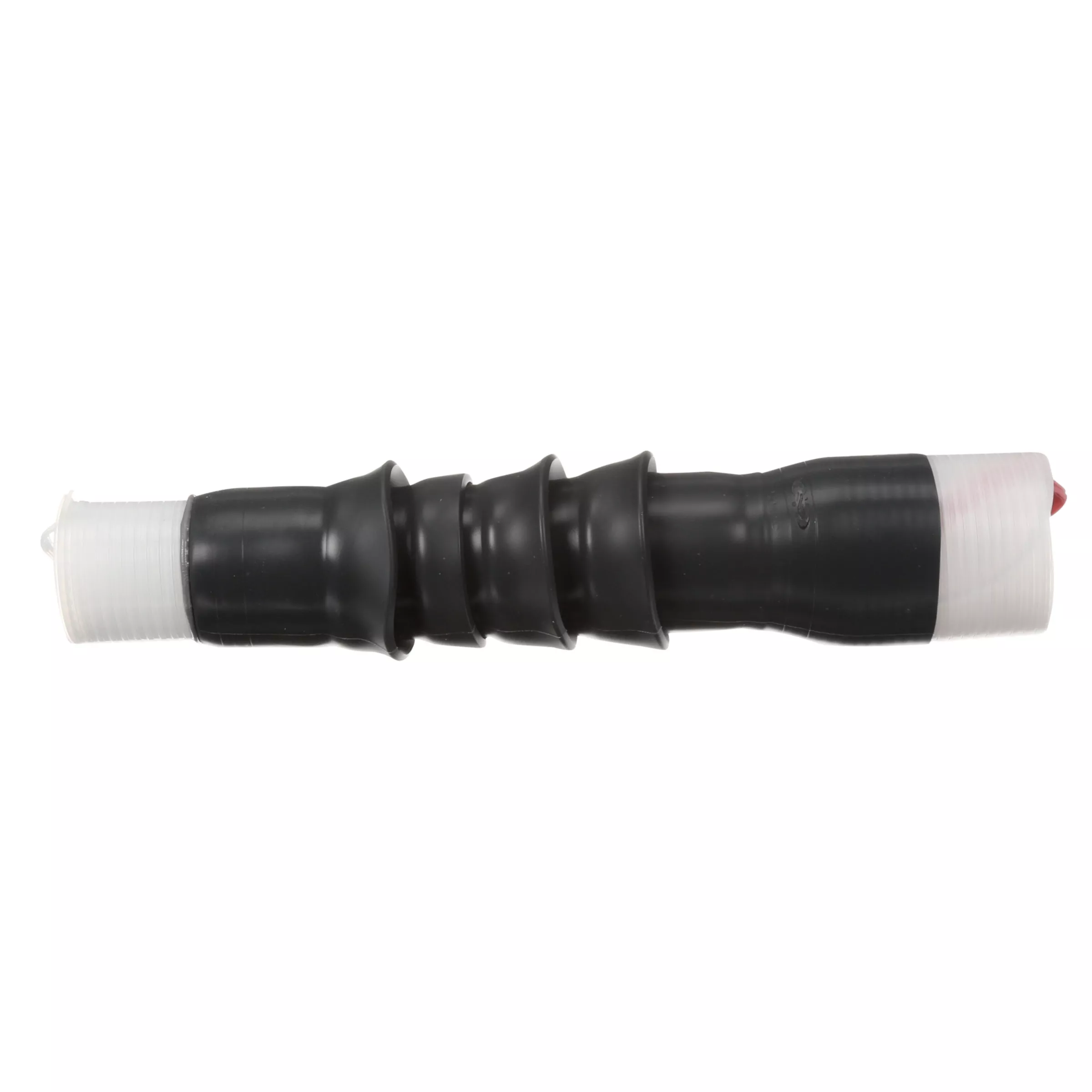

3M™ Cold Shrink QT-III Silicone Rubber Terminations are a one-piece, non-skirted silicone rubber termination that comes with factory-applied, pre-positioned Hi-K stress control layers underneath the insulator. Its short installed length is excellent for installations in limited spaces, such as those with motors, starters, switchgear, variable speed drives, transformers and similar connections which often reduce the need to add auxiliary boxes when enclosure space is limited. The 3M™ Cold Shrink QT-III Silicone Rubber Termination, 7654-S-4 has a conductor size range for 5 kV: 500-750 kcmil, 8 kV: 350-700 kcmil, 15 kV: 4/0 AWG-500 kcmil and 25/28 kV: 2/0 AWG-250 kcmil.
Specifications
| Brand Name | 3M | Item Name | Cold Shrink Termination Kit |
| Type | QT-III | Voltage Rating | 5 – 28 kV |
| Conductor Size | 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil | Material | Silicone Rubber |
| Series/Model | 7650 Series | For Use With | 0.83 – 1.53 in Cable |
| Includes | 1 Termination Per Kit | Standards | IEEE 48 Class I Approved |
| Application | For Outdoor Applications | UPC | 054007422037 |
