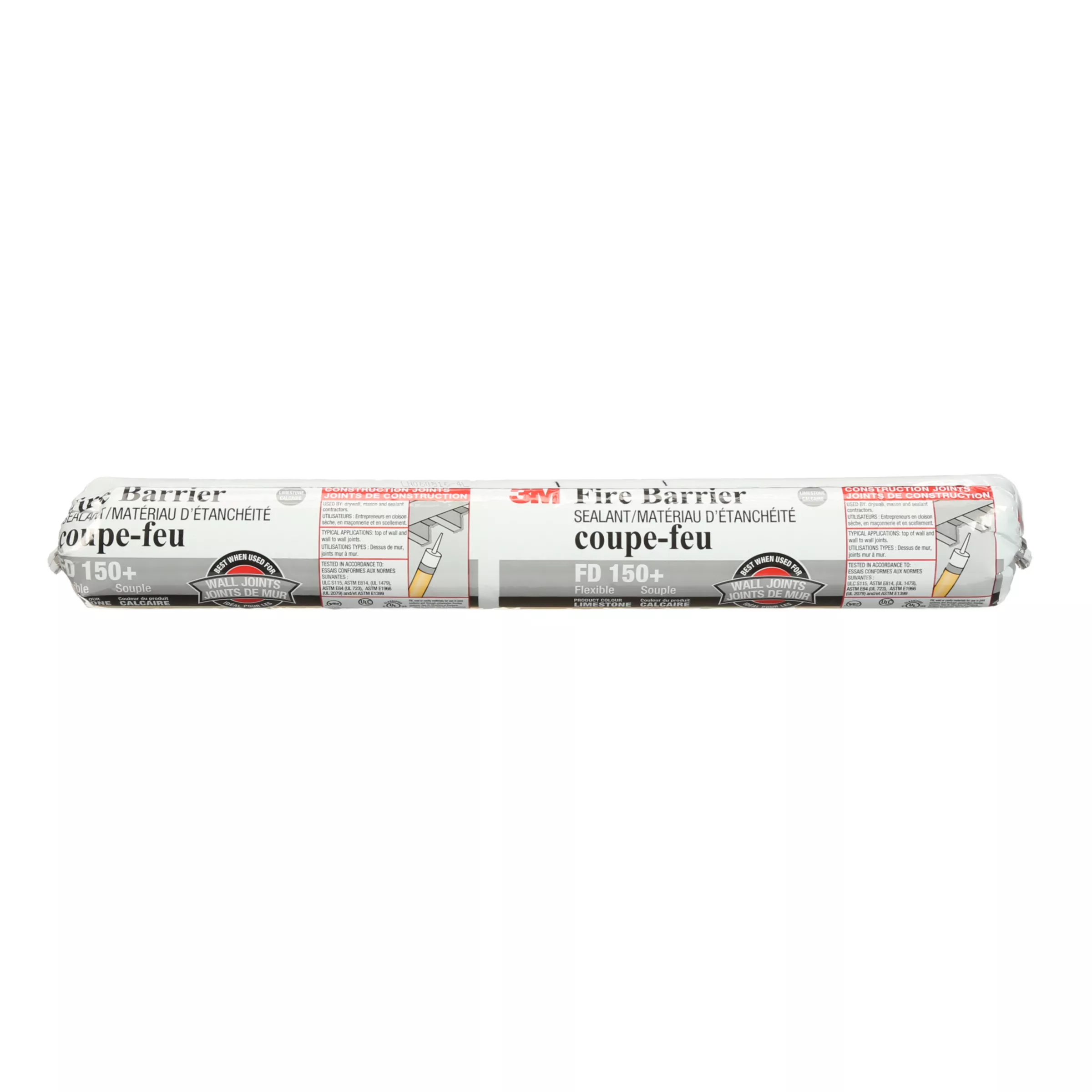

The 3M™ FireDam™ Fire Barrier Sealant is an acrylic latex caulk used to firestop metal pipes and cables through concrete or gypsum and for use in dynamic head-of-wall systems.
Specifications
| Brand Name | 3M | Item Name | Fire Barrier Sealant |
| Container Size | 20 fl oz | Container Type | Sausage Pack |
| Form | Solid | Color | Limestone |
| Odor/Scent | Low | Composition | 30 – 60% Calcium Carbonate, 10 – 30% Polymer, 5 – 10% Acrylic Emulsion, 5 – 10% Mineral Spirits, 5 – 10% Water, 1 – 5% Ethylene Glycol, 1 – 5% Plasticizer, 1 – 5% Titanium Dioxide, <2% Surfactant, 0.5 – 1.5% Ethyl Hydroxyethyl Cellulose, <1% 2-Aminoisobutanol, <0.2% Quartz Silica |
| Base Type | Water | Drying Time | 30 – 60 min |
| Curing Time | 24 hr | Specific Gravity | 1.45 |
| Tensile Strength | 37 lb/in² | pH Range | 8 – 9 |
| VOC Content | <250 g/l | Flash Point | >93 °C |
| Shelf Life | 18 mon | Temperature Rating | -20 to 180 °F |
| Standards | ASTM E814, UL 1479 and CAN/ULC S115M, ASTM E1966, UL 2079 | Application | For Construction Joints, Piping, All Non-Combustible and Small Diameter Combustible, Cables |
| UPC | 051141082905 |
