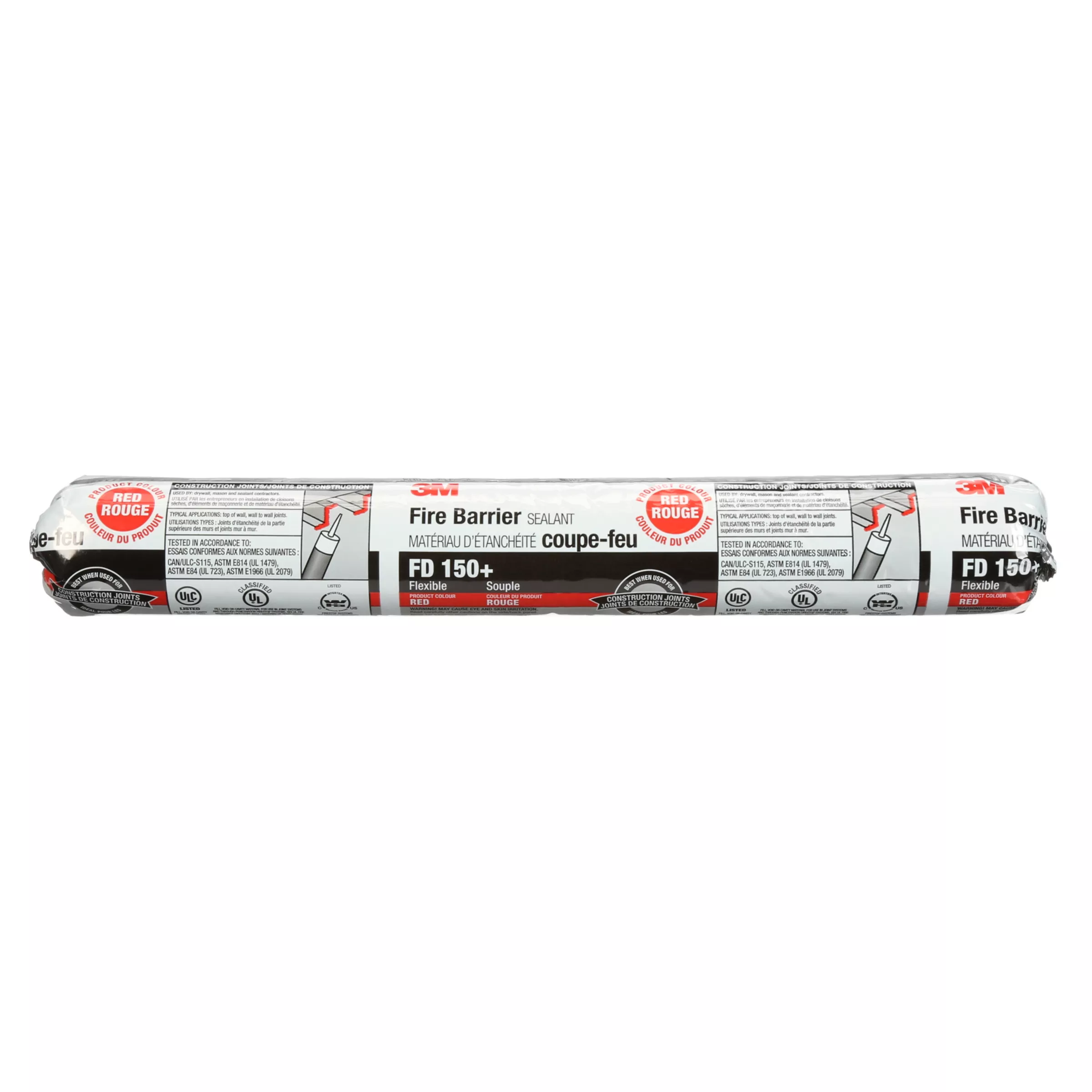

The 3M™ Fire Barrier Sealant 150+ is an acrylic latex caulk used to firestop metal pipes and cables through concrete or gypsum and for use in dynamic head-of-wall systems.
Specifications
| Brand Name | 3M | Item Name | Fire Barrier Sealant |
| Container Size | 20 fl oz | Container Type | Sausage Pack |
| Form | Solid | Color | Red |
| Odor/Scent | Low | Composition | 40 – 70% Calcium Carbonate, 10 – 30% Polymer, 5 – 10% Acrylic Emulsion, 5 – 10% Mineral Spirits, 5 – 10% Water, 1 – 5% Ethylene Glycol, 1 – 5% Iron Oxide, 1 – 5% Plasticizer, 0.5 – 1.5% Ethyl Hydroxyethyl Cellulose, <1% 2-Aminoisobutanol, 0.1 – 1% Quartz Silica, <0.1% 2-Methyl-4-Isothiazoline-3-one, <0.1% 5-Chloro-2-Methyl-4-Isothiazoline-3-Pne |
| Base Type | Latex | Drying Time | 30 – 60 min |
| Curing Time | 24 hr | Specific Gravity | 1.45 |
| Tensile Strength | 37 lb/in² | pH Range | 8 – 9 |
| VOC Content | <250 g/l | Shelf Life | 18 mon |
| Temperature Rating | -20 to 180 °F | Standards | ASTM E814, UL 1479 and CAN/ULC S115M, ASTM E1966, UL 2079 |
| Application | For Construction Joints, Piping, All Non-Combustible and Small Diameter Combustible, Cables | UPC | 051141083971 |
