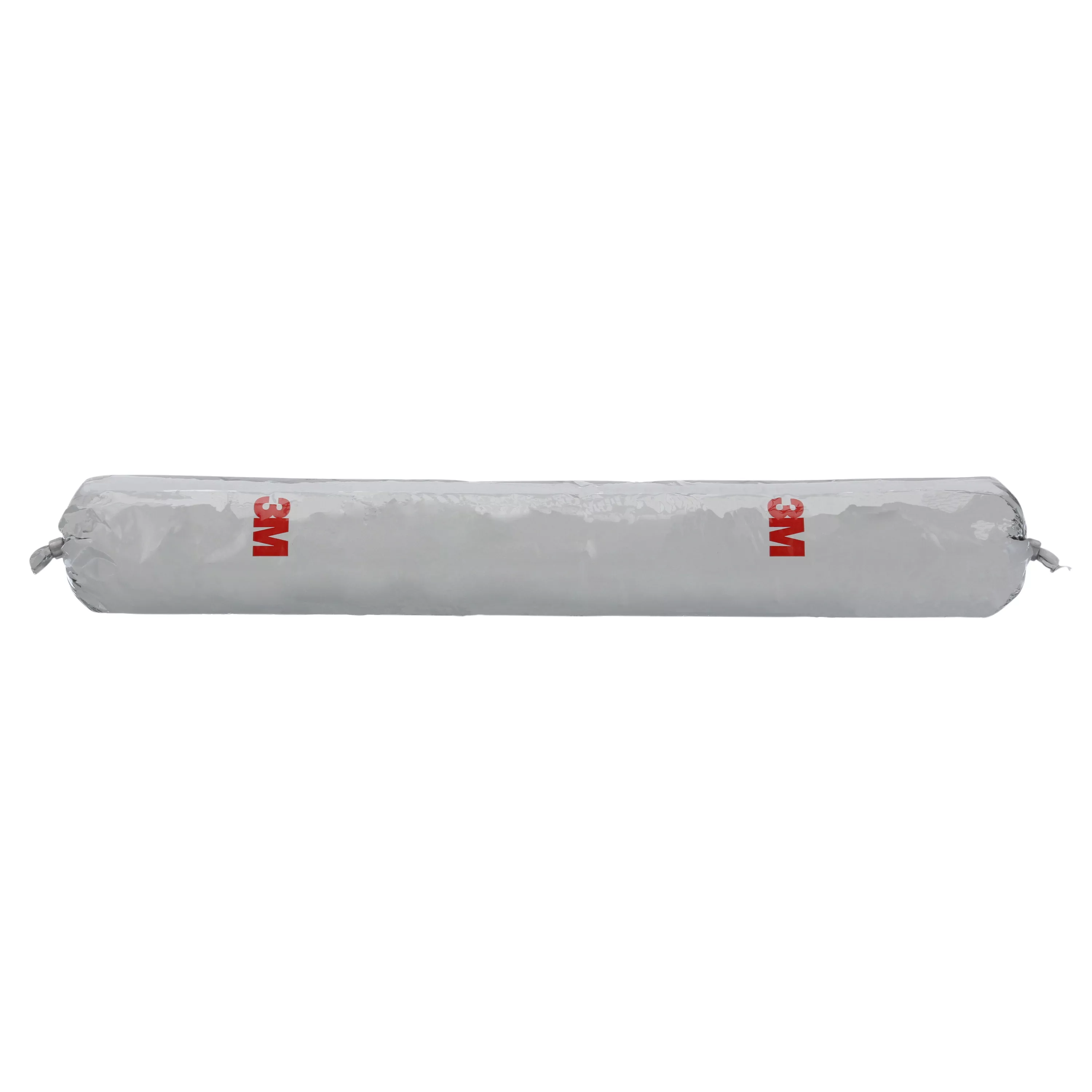

A flexible firestop for metal pipe, cable penetrations and top-of-wall applications, 3M™ Fire Barrier Sealant FD 150+ cures upon exposure to the atmosphere to form a monolithic seal. When properly installed, this sealant helps control the spread of fire, smoke and noxious gasses before, during and after exposure to a fire and exhibits excellent adhesion to a full range of construction substrates.
Specifications
| Brand Name | 3M | Item Name | Fire Barrier Sealant |
| Container Size | 20 fl oz | Container Type | Sausage Pack |
| Form | Solid | Color | White |
| Series | FD 150+ | Odor/Scent | Low Acrylic |
| Composition | 40 – 60% Calcium Carbonate, 10 – 20% Polymer NJTS Reg. No. 04499600-7189, 1 – 10% Medium Aliphatic Solvent Naphtha, 1 – 10% Water, <5% Dibenzoate Propanol, <5% Ethylene Glycol, <5% Titanium Dioxide, <1% 2-Aminoisobutanol, 0.1 – 1% Ethyl Hydroxyethyl Cellulose, 0.5 – 1% Surfactant, <0.5% 3(2H)-Isothiazolone, 5-Chloro-2-Methyl-, mixt. with 2-Methyl-3(2H)-Isothiazolone, <0.5% Octhilinone, <0.5% Quartz Silica | Specific Gravity | 1.52 |
| VOC Content | <15% | Temperature Rating | -28 to 82 °C |
| Standards | ASTM E 814 (UL 1479) and CAN/ULC S115, ASTM E 1966 (UL 2079) | Application | For Construction Joints, Cables, Piping, All Non-Combustible and Small Diameter Combustible |
| UPC | 689330147465 |
