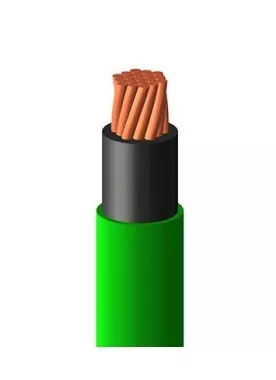

CSA Safe-T-ground green/stripes, single conductor unarmored, 1000V. Tray Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40 °C (-40 °F) environments. Applicable for use in Utilities, Industrial and Commercial applications. Strand Bare (ASTM B8) Annealed Copper Conductors. XLPE (RW90 Rated) Insulated Conductor. FR PVC Outer Green with Dual SAFE-T- STRIPES Protective Jacket.
Specifications
| Brand Name | Southwire | Item Name | Tray Control Cable |
| Type | Safe-T-Ground | Wire Gauge Size | 4/0 AWG |
| Conductor Material | Copper | Jacket Material | PVC |
| Color | Green | Voltage Rating | 1000 V |
| Insulation Material | XLPE | Minimum Bend Radius | 7 in |
| Amperage Rating | 405 A | Temperature Rating | -40 to 90 °C |
| Standards | RoHS Compliant, CSA Certified, TC Approved, CSA FT4, UL 1685 FT4, Vertical Tray Flame Test rated | Application | Utilities, Industrial and Commercial Applications |
