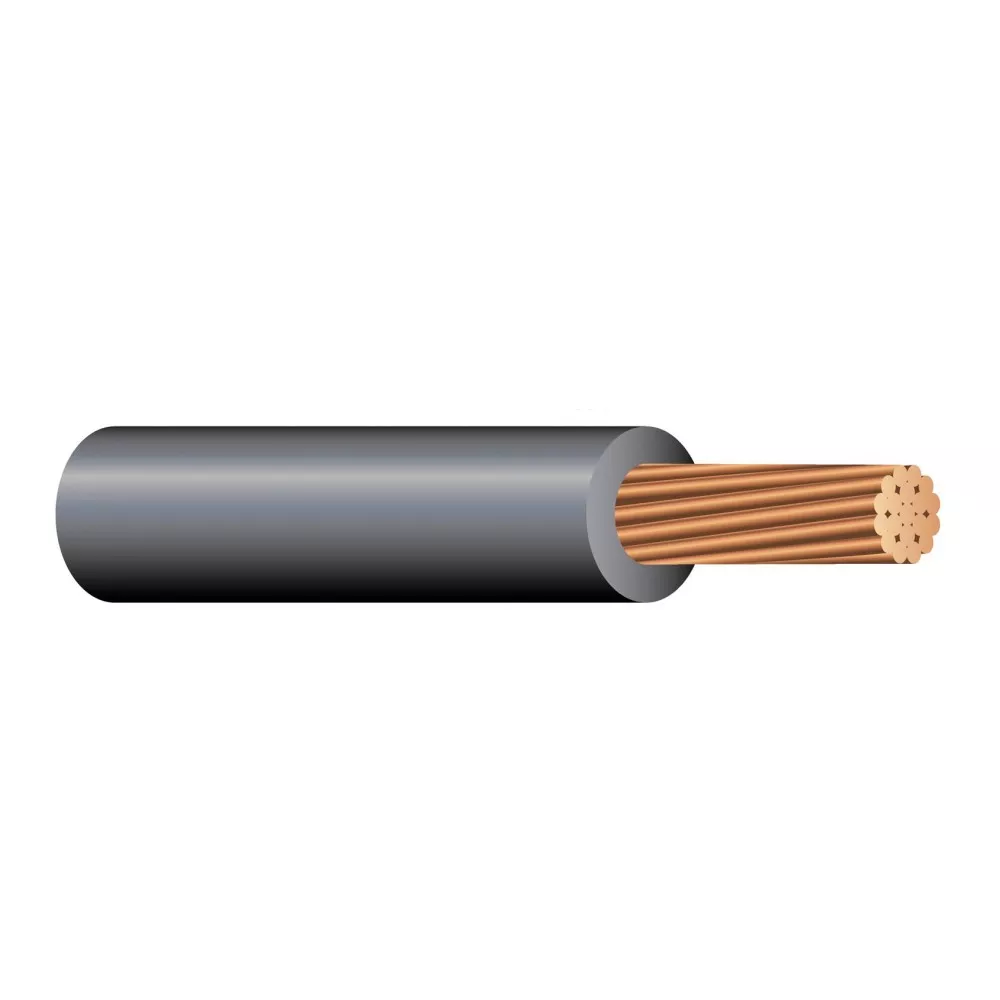

Copper RW90 Black 4/0 AWG Cable is for open wiring and use in raceways (except cable troughs and ventilated flexible cableways) in dry or wet locations.
Specifications
| Brand Name | Southwire | Sub Brand | SIMpull® |
| Item Name | RW90 Building Wire | Wire Gauge Size | 4/0 AWG |
| Stranded/Solid | Stranded | Number of Strands | 19 |
| Conductor Material | Copper | Insulation Material | XLPE |
| Jacket Color | Black | Voltage Rating | 600 V |
| Outside Diameter | 0.623 in | Insulation Thickness | 0.055 in |
| Amperage Rating | 360 A at 75 °C, 405 A at 90 °C | Weight per 1000 Foot | 698 lb |
| Temperature Rating | -40 to 90 °C | Standards | CSA Spec. C22.2, No. 38, CSA FT1 – Flame Test Rating, CSA Certified in File Number LL90458, RoHS Compliant |
| Application | For Open Wiring and Use in Raceways in Dry or Wet Locations |
