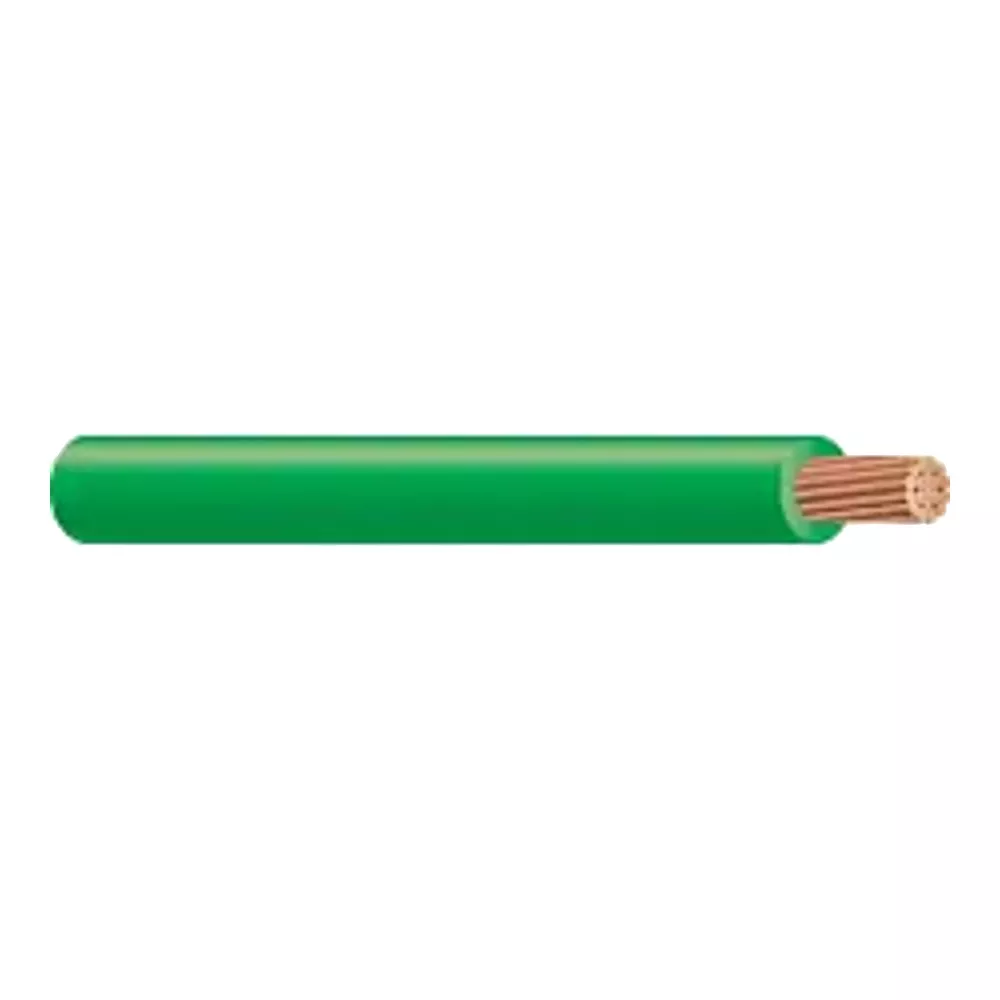

Copper Conductor, 600 V, 90 °C MAX – 40 °C MIN, Cross Linked Polyethylene (XLPE) Single copper conductor with low temperature, moisture resisting XLPE (cross linked polyethylene) insulation. This product meets the current RoHS requirements. No lead is added or used in manufacturing.
Specifications
| Brand Name | Southwire | Sub Brand | SIMpull® |
| Item Name | RW90 Building Cable | Type | Sunlight-Resistant |
| Wire Gauge Size | 4 AWG | Stranded/Solid | Stranded |
| Number of Strands | 7 | Conductor Material | Copper |
| Insulation Material | Cross-Linked Polyethylene | Jacket Color | Green |
| Voltage Rating | 600 V | Outside Diameter | 0.318 in |
| Insulation Thickness | 0.045 in | Weight per 1000 Foot | 150 lb |
| Temperature Rating | -40 to 90 °C | Standards | CSA C22.2, No. 38, LL90458, RoHS compliant, UL Listed, CSA FT1 Rated |
| Application | For Open Wiring and Use in Raceways (Except Cable Troughs and Ventilated Flexible Cableways) in Dry or Wet Locations |
