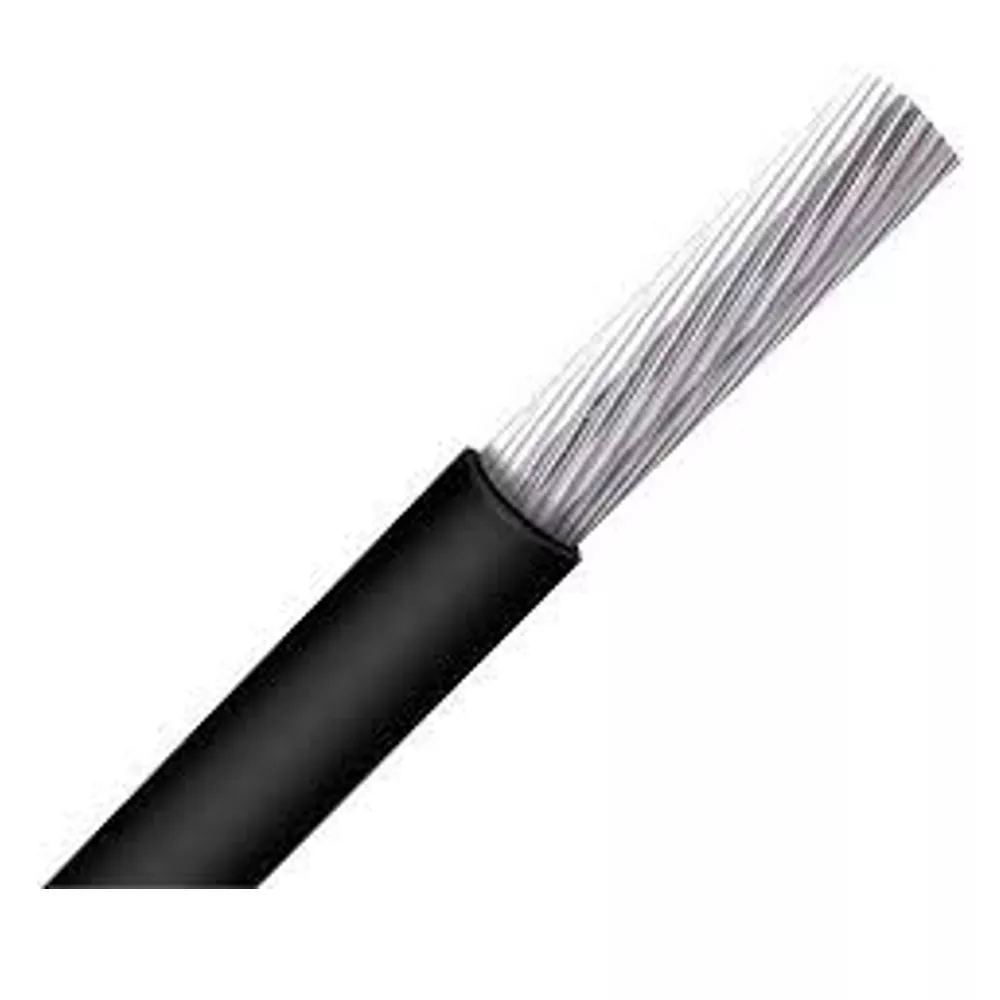

RW90 High Speed (HS) XLPE, Low-Voltage Power 600V, CSA Type RW90, Single Conductor, Aluminum. 8 AWG thru 2 AWG Class B compact stranded aluminum alloy (8000 Series) per ASTM B800 and ASTM B801. 1 AWG thru 350 kcmil compact stranded SIW aluminum alloy (8000 Series) per ASTM B800, ASTM B801 and ASTM B836. 400 kcmil thru 1000 kcmil Class B compact stranded aluminum alloy (8000 Series) per ASTM B800 and ASTM B801. Rated 90°C wet and dry locations. UV/sunlight-resistant, moisture-resistant and flame-retardant insulation in all colors. Meets cold bend and cold impact tests at -40°C. Excellent electrical, thermal and physical properties. Resistant to crush, compression cuts and heat deformation. Rated for direct burial. High Speed (HS) cable features a specially designed XLPE insulation that allows for fast and easy cable pulls.
Specifications
| Brand Name | Priority Wire & Cable | Item Name | RW90 Building Wire |
| Wire Gauge Size | 400 kcmil | Stranded/Solid | Stranded |
| Number of Strands | 35 | Conductor Material | Aluminum |
| Insulation Material | XLPE | Jacket Color | Black |
| Voltage Rating | 600 V | Outside Diameter | 0.792 in |
| Insulation Thickness | 0.065 in | Amperage Rating | 305 A |
| Weight | 1487 lb/km | Standards | ASTM Standards B 800, B 801, CSA 22.2 No. 38, cUL Standard 44, Class B Per ASTM, Requirements of the Canadian Electrical Code |
| Application | For Power Distribution |
