Where would you normally use a stainless steel wire cable?The most common application is balustrading but there are many other uses for it including; shade structures, architectural rigging, cable trellis, shop fittings and marine applications.
What is it made out of?316 Stainless Steel.

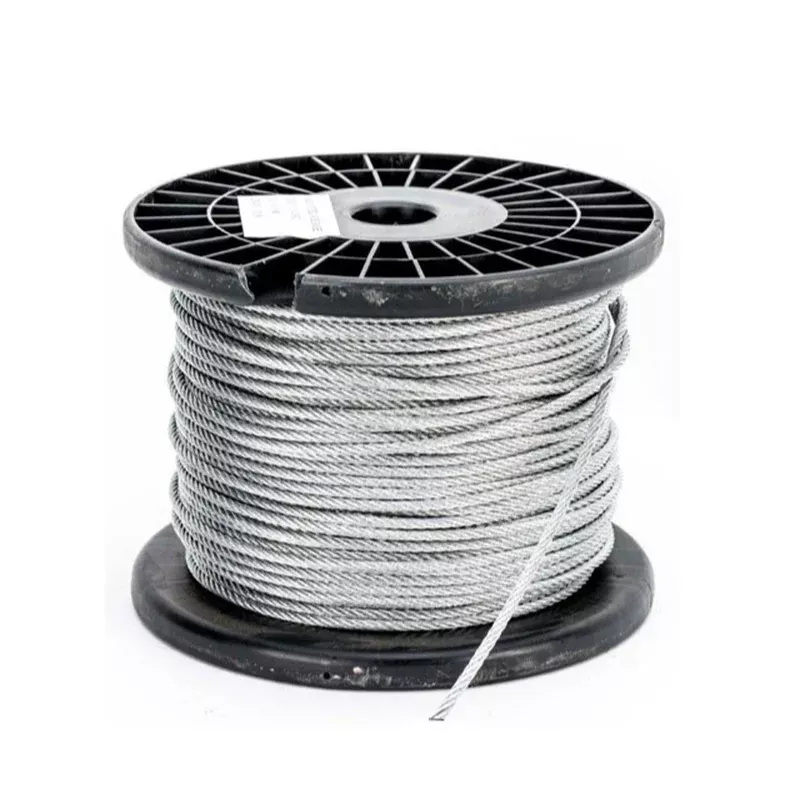

The cable is made up of 7 lots of 19 small cables (133 in total) that are twisted to form a wire rope that is 6.0mm thick.
What is the difference between 1×19, 7×7 and 7×19 configurations?The 1×19 cable is slightly stronger than the other cables, but is the least flexible. It is also the nicest looking cable due to the less strands of wire that make it up.The 7×7 cable is semi-flexible, has a lesser breaking load than compared to the 1×19, but greater than 7×19.Ther 7×19 cable is the most flexible, which allows it to loop back on itself without kinking. It has the lowest breaking load of the 3.If you are using the wire for balustrading; in particular in conjunction with fittings that require the use of a hydraulic swager, either of the 3 wires wire will be fine; but if you are using fittings that need the cable to wrap around a thimble, then the more flexible 7×7 or 7×19 cable is a much easier option for this purpose.
Can it be used for exterior applications?As it is 316 grade Stainless Steel it is more than suitable to be used inside or outside.
