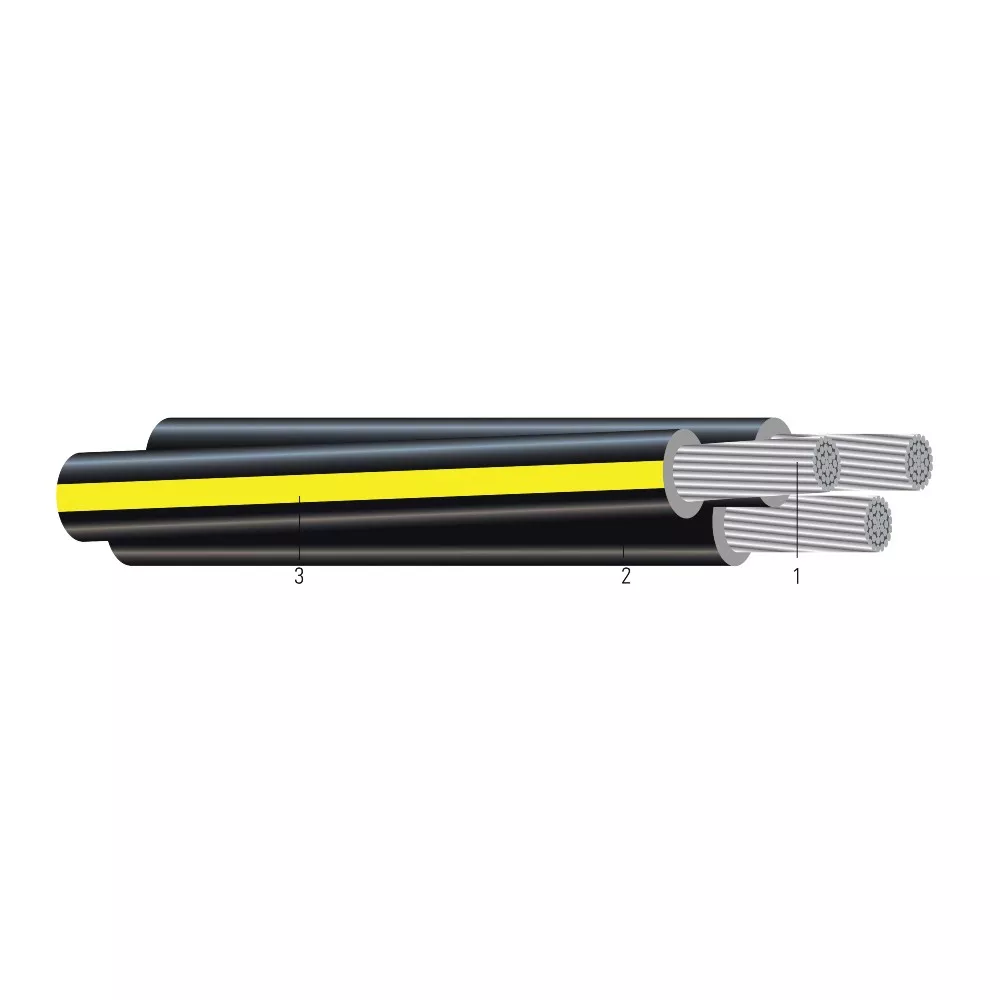

Triplex 600 V Underground Service Entrance Cable. Conductors are stranded, compressed 1350-H16/H26 (3/4 Hard) aluminum, insulated with cross-linked polyethylene. Neutrals are identified by three yellow extruded stripes. Cables with “YES” neutrals have sequential footage markers. Conductors are durably surface printed for identification. Two-phase conductors and one neutral conductor are cabled together to produce the quadruplex cable configuration. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload and 250°C for short circuit conditions.
Specifications
| Brand Name | Approved Vendor | Item Name | NS75 Service Drop Cable |
| Type | Triplex, Full Bare Neutral | Wire Gauge Size | 6 AWG |
| Number of Conductors | 3 | Conductor Material | Aluminum |
| Insulation Material | LLDPE | Jacket Material | PVC |
| Voltage Rating | 600 V | Outside Diameter | 4.29 mm |
| Insulation Thickness | 1.04 mm | Temperature Rating | 75 °C |
| Standards | CSA C68.8 |
