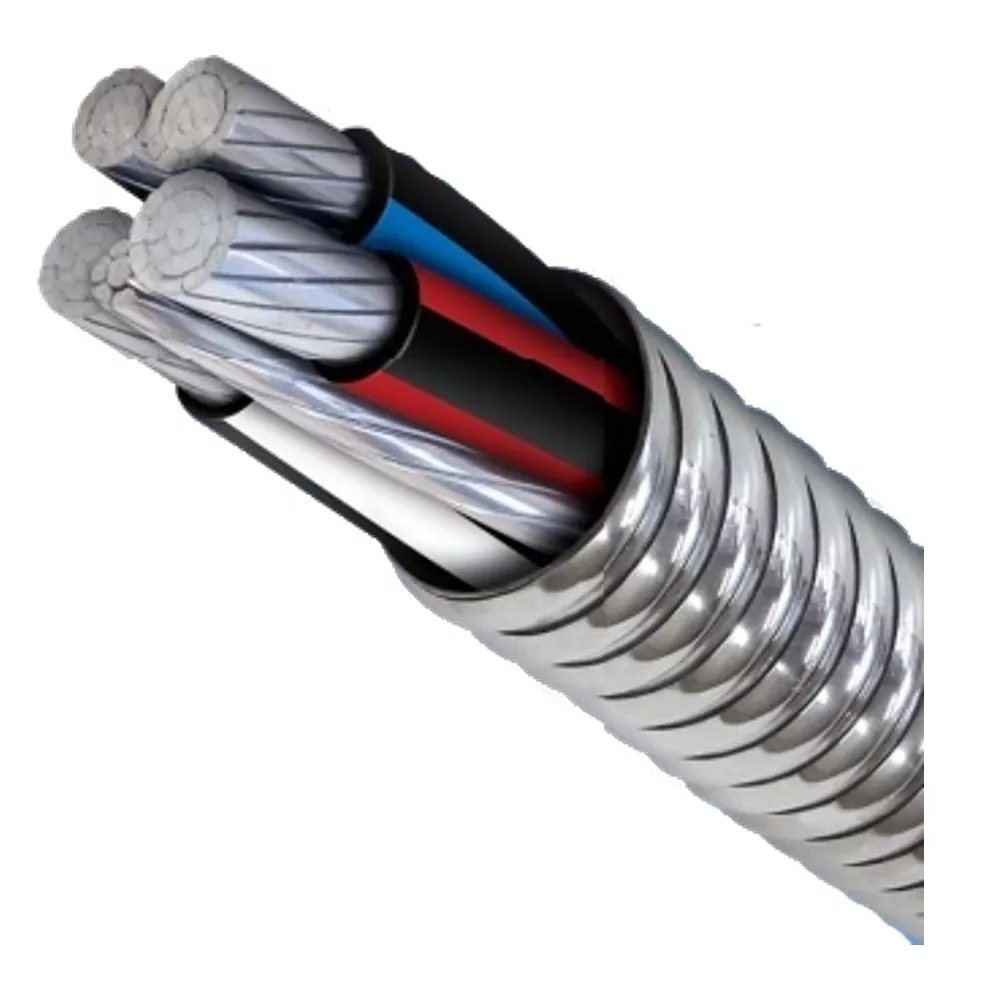

ACWU90 cable with its interlocked aluminum armor and PVC jacket is designed for direct burial, wet locations or encased in concrete. The outer PVC jacket on ACWU90 makes this durable and rugged cable assembly approved for use in Class 1 Zone 1 and 2, and Classes 2 and 3, Divisions 1 and 2 hazardous locations.
Specifications
| Brand Name | Prysmian Group | Sub Brand | NUAL® |
| Item Name | ACWU90 Cable | Type | Armored |
| Wire Gauge Size | 750 kcmil | Number of Conductors | 1 |
| Stranded/Solid | Stranded | Length | 150 m |
| Conductor Material | Aluminum | Armor Material | Aluminum |
| Voltage Rating | 600 V | Outside Diameter | 1.56 in |
| Insulation Material | XLPE | Insulation Thickness | 0.06 in |
| Jacket Material | PVC | Jacket Thickness | 0.06 in |
| Weight | 1097 kg/km | Weight per 1000 Foot | 427 lb |
| Temperature Rating | -40 to 90 °C | Standards | ASTM B800/B801/B836, CSA LL28117 Certified, FT-1 and FT-4 Rated, OSHA Certified, RoHS Compliant |
| Application | For Outdoor (Exposed Locations), In Wet Locations (Type RW90 Conductors), Direct Buried, In Cable Trays, Temporary Power and As Aerial Cable on a Messenger |
