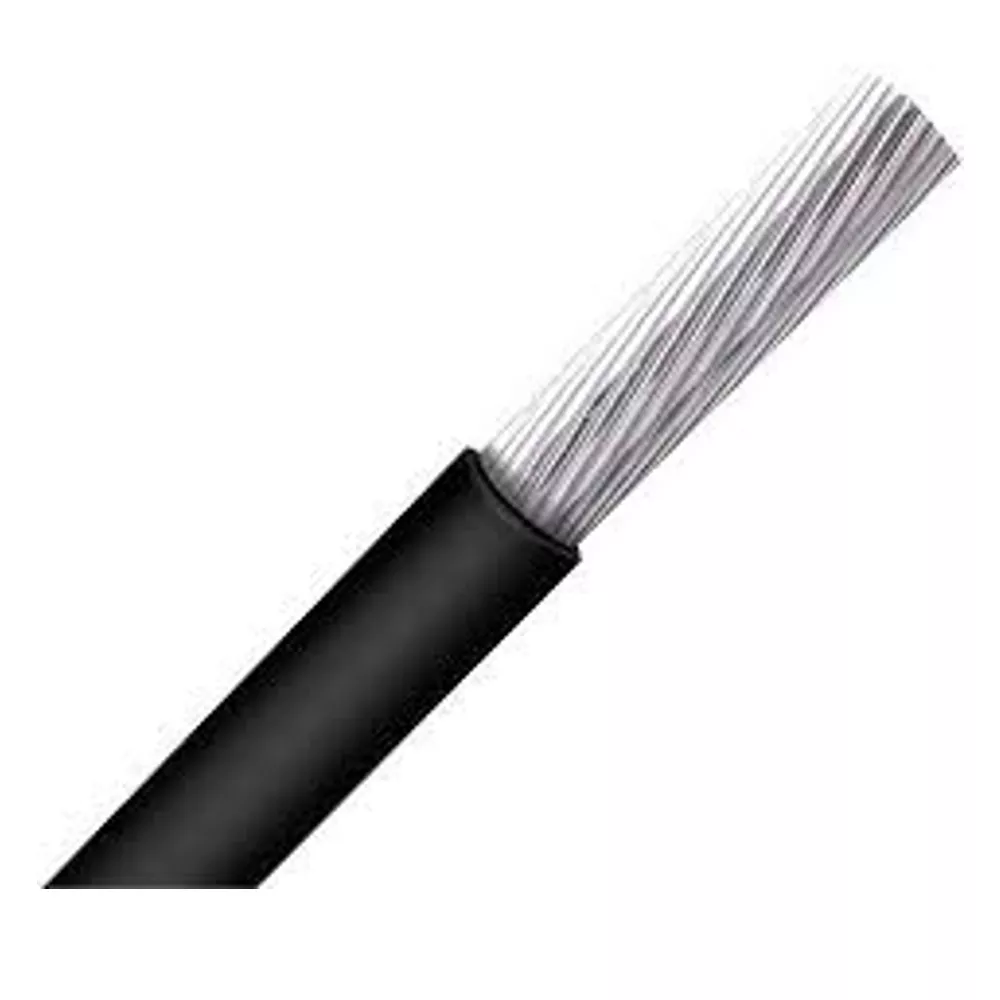

RWU90 High Speed (HS) XLPE, Low-Voltage Power 1000V, CSA Type RWU90, Single Conductor, Aluminum. 8 AWG thru 2 AWG Class B compact stranded aluminum alloy (8000 Series) per ASTM B800 and ASTM B801. 1 AWG thru 350 kcmil compact stranded SIW aluminum alloy (8000 Series) per ASTM B800, ASTM B801 and ASTM B836. 400 kcmil thru 1000 kcmil Class B compact stranded aluminum alloy (8000 Series) per ASTM B800 and ASTM B801. Rated 90°C wet and dry locations. UV/sunlight-resistant, moisture-resistant and flame-retardant insulation in all colors. Meets cold bend and cold impact tests at -40°C. Excellent electrical, thermal and physical properties. Resistant to crush, compression cuts and heat deformation. Rated for direct burial. High Speed (HS) cable features a specially designed XLPE insulation that allows for fast and easy cable pulls.
Specifications
| Brand Name | Prysmian Group | Sub Brand | NUAL® |
| Item Name | RWU90 Building Wire | Type | High Speed |
| Wire Gauge Size | 750 MCM | Number of Conductors | 1 |
| Stranded/Solid | Stranded | Conductor Material | Aluminum |
| Insulation Material | XLPE | Jacket Color | Black |
| Voltage Rating | 1000 V | Temperature Rating | 90 °C |
| Standards | ASTM B800 and ASTM B801, Canadian Electrical Code (CEC), Part 1, CSA Certified, CEC Approved, OHSA Approved, RoHS Compliant | Application | For Use in Raceways in Dry, Damp or Wet Locations |
