Details
- Solid forged brass

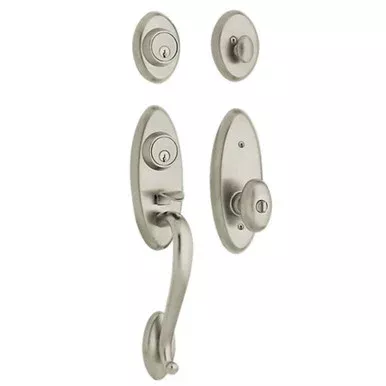

- shown with 5225 interior egg knob
- SOLID BRASS: Entrance handle, cylinder collar, knob,rose and turn piece are manufactured of solid brass formaximum strength and durability.
- DOOR THICKNESS: Lock sets accommodate a doorthickness of 1-3/4˝ (44mm). Cannot be installed on doors thicker than 2″ (51mm)
- Distance between center of latch and deadbolt (CTC): Lockset accommodates any center-to-center dimension greater than 4-3/4″ (121mm)
- Cylinder supplied with 5-pin C Keyway. Cylinder is protected with a free-turning cylinder guard to resist gripping or twisting
- DOOR PREP: Designed to fit 2-1/8″ face bore with a 3-hole prep (in addition to the thru bolt at the bottom)
- NOTE: When installing a two-point handleset on a door prepped for a standard single point handleset with a 5-1/2″ CTC boring, the location of the thumb piece will be approximately 2-1/2″ lower.
- KEYING: Both cylinders will come keyed alike (standard). To request otherwise, please order by phone at 1-800-358-2469.
- Limited Lifetime Mechanical Warranty
- More detail on Finishes
- All tubular locks can be customized by split finish, interior knob or interior lever. Please call 1-800-358-2469 to speak with a Baldwin specialist or to order by phone. See all estate interior knobs or lever options
