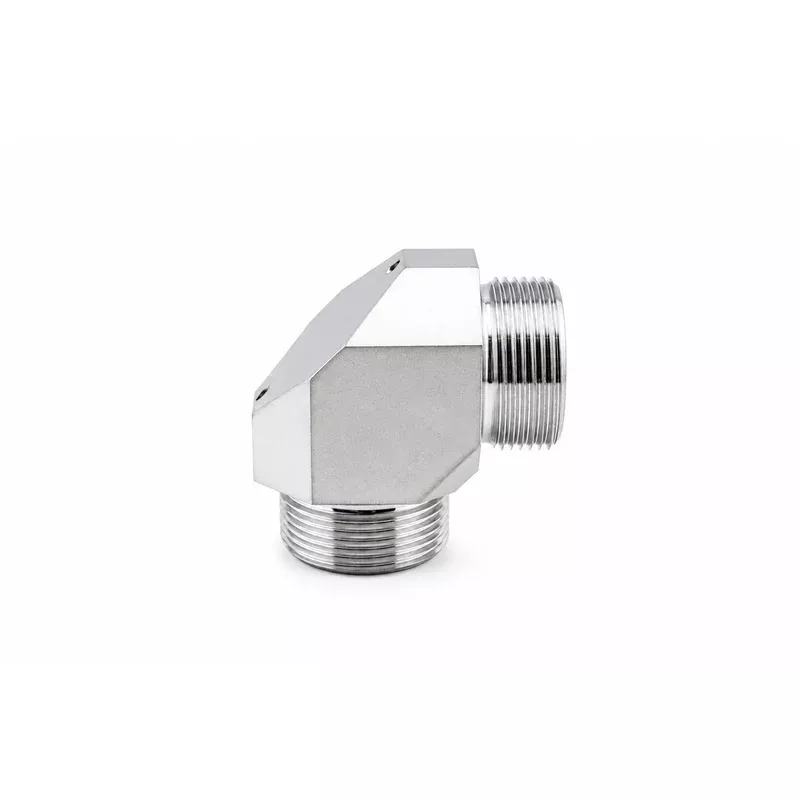

A precision-machined replacement body for Flow high-pressure dual-axis swivel assemblies. Built for 87,000 psi waterjet cutting systems, this body provides the main pressure-containing structure that supports smooth cutting-head articulation while maintaining proper sealing geometry around the swivel shaft, seal hoop, and related wear components. It is used when the existing swivel body is worn, damaged, scored, or no longer able to maintain reliable high-pressure sealing.
Related products:
- 87K 1/4 Inch 90 Degree Dual Axis Swivel Assembly (014922-1) – complete swivel assembly that uses this body style for dual-axis articulation at 87,000 psi.
- 87K Swivel Maintenance Kit (015093-1) – includes the primary seals, bearings, O-rings, glands, collars, and related hardware commonly serviced during swivel rebuilds.
- 87K Swivel Seal Ring (013634-1) – provides the high-pressure sealing surface between the swivel shaft and body.
- 87K Swivel Seal, 0.25 Inch ID (013633-1) – key sealing component used inside 87K swivel assemblies to control leakage around the rotating shaft.
- 87K 1/4 Inch Anti Vibration Gland (044347-1) – secures the high-pressure tube connection and helps maintain stable sealing at the swivel interface.
Service tip: When replacing a swivel body, inspect the shaft, seal hoop, bearings, glands, collars, and cone seats before reassembly. A new body should be paired with fresh sealing components whenever wear, leakage, fretting, or rough rotation is present to help restore smooth swivel movement and reliable 87K pressure performance.
