DESCRIPTION

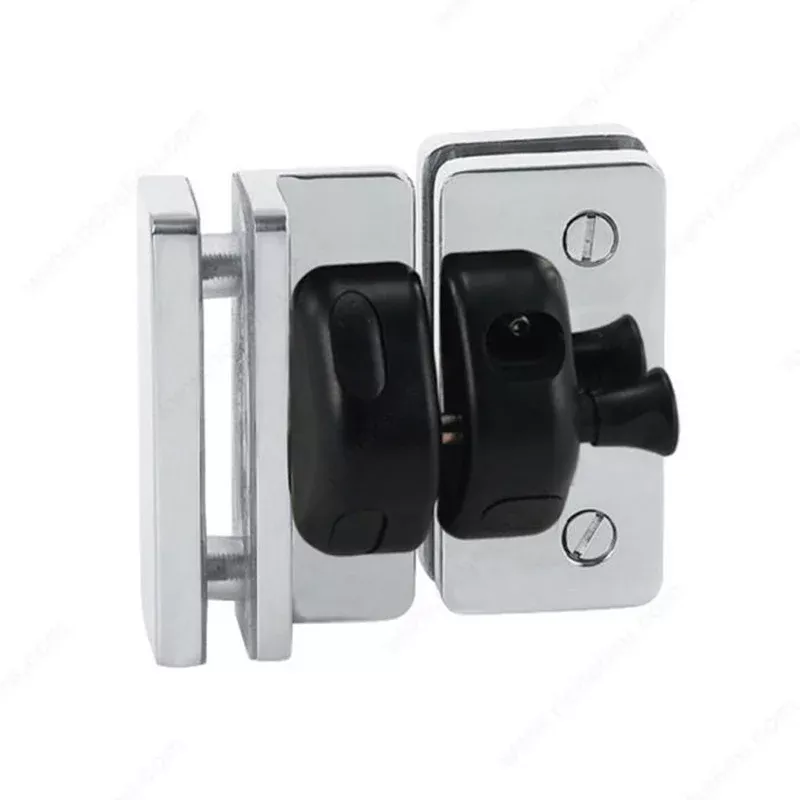

Magnetic Latch
This magnetic latch features a side pull latch to further lock the glass door.Ideal for making a corner junction of two glass panels in a pool area.
ADVANTAGES AND BENEFITS
Gives an exceptionally clear view for any outdoor space.Ideal for the security fence around a swimming pool.Resistant to water and weather.
TECHNICAL SPECIFICATIONS
Product
PGLGG090E170
Type of Mounting
Glass Mount
Safety Glass Thickness
12 mm
Finish
Stainless Steel
Height
100 mm
Width
38 mm
Length
90 mm
Material
Stainless Steel: 316
Glass Drilling
Required
Recommended Location Usage
Interior, Exterior
Mounting Side
Reversible
Product Type
Bolt
Milling C/C
72 mm
Milling Diameter
16 mm
APPLICATION
– Swimming pool and gate safety hardware– Installation on two perpendicular glass panels
INCLUDED PRODUCT(S)
Screw covers designed for black side pull latch included.
IMPORTANT INFORMATION
The use of a magnetic latch in conjunction with a gravity-closing hinge maximizes safety and reduces access to the water.These components help prevent drowning, but do not replace close monitoring.
