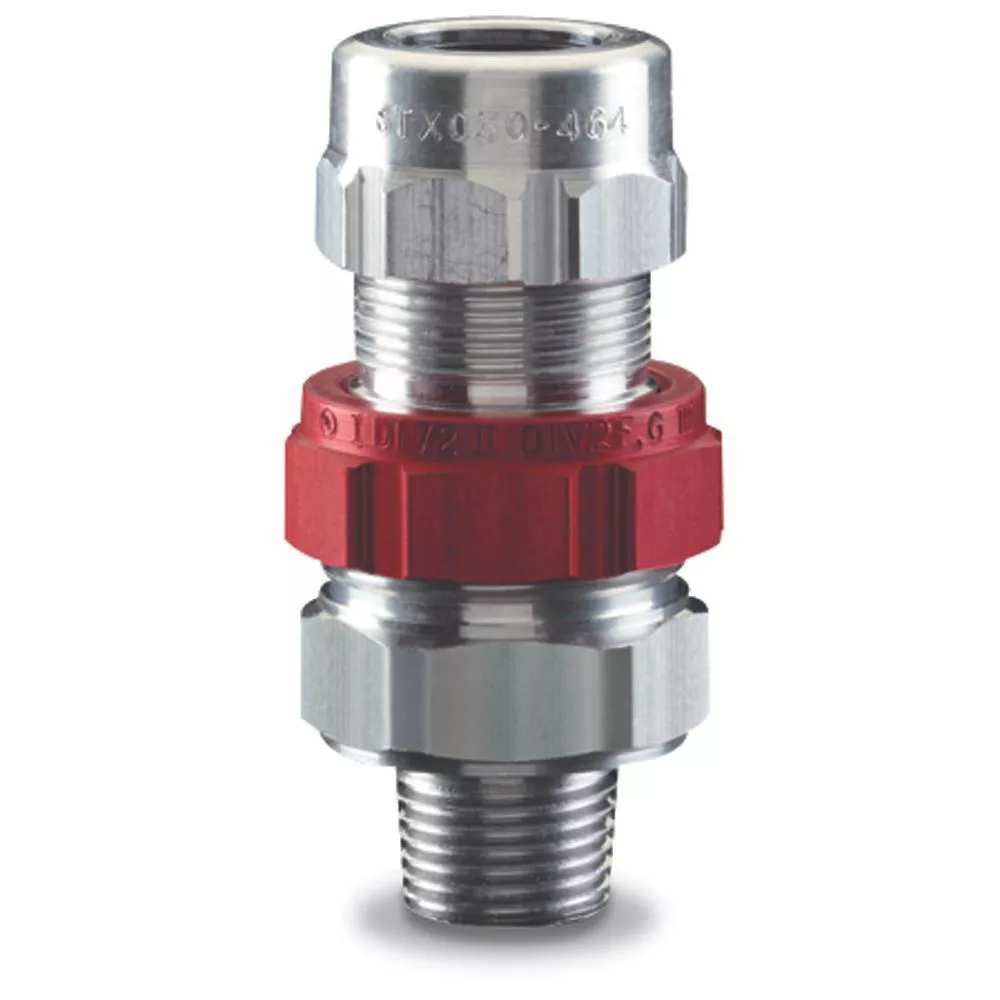

Aluminum fitting with a hub size of 1/2 in. and the outer jacket diameters from 0.6 to 0.76.
Working with engineers from the petrochemical, oil and gas industries, Thomas & Betts then introduced the STAR TECK XP fitting.
With an easy-to-fill, integral sealing chamber and a disconnectable design requiring minimal cable preparation, this fitting became the benchmark for ease of installation in hazardous environments.
A line of liquid and putty sealants was also developed at the same time, eliminating the need for the cement sealants used up to this point.
A line of liquid and putty sealants was also developed at the same time, eliminating the need for the cement sealants used up to this point.
Specifications
Brand Name
ABB
Sub Brand
Star Teck® XP®
Item Name
Cable Gland
Type
Straight, Jacketed
Trade Size
1/2 in
Conductor Size
0.6 – 0.76 in
Thread Type
NPT
Material
Aluminum
Finish
Silver and Red
Includes
Sealing Ring
Standards
UL File Number E82038, CSA File Number 23086
Application
For Hazardous Locations
UPC
786210904757
