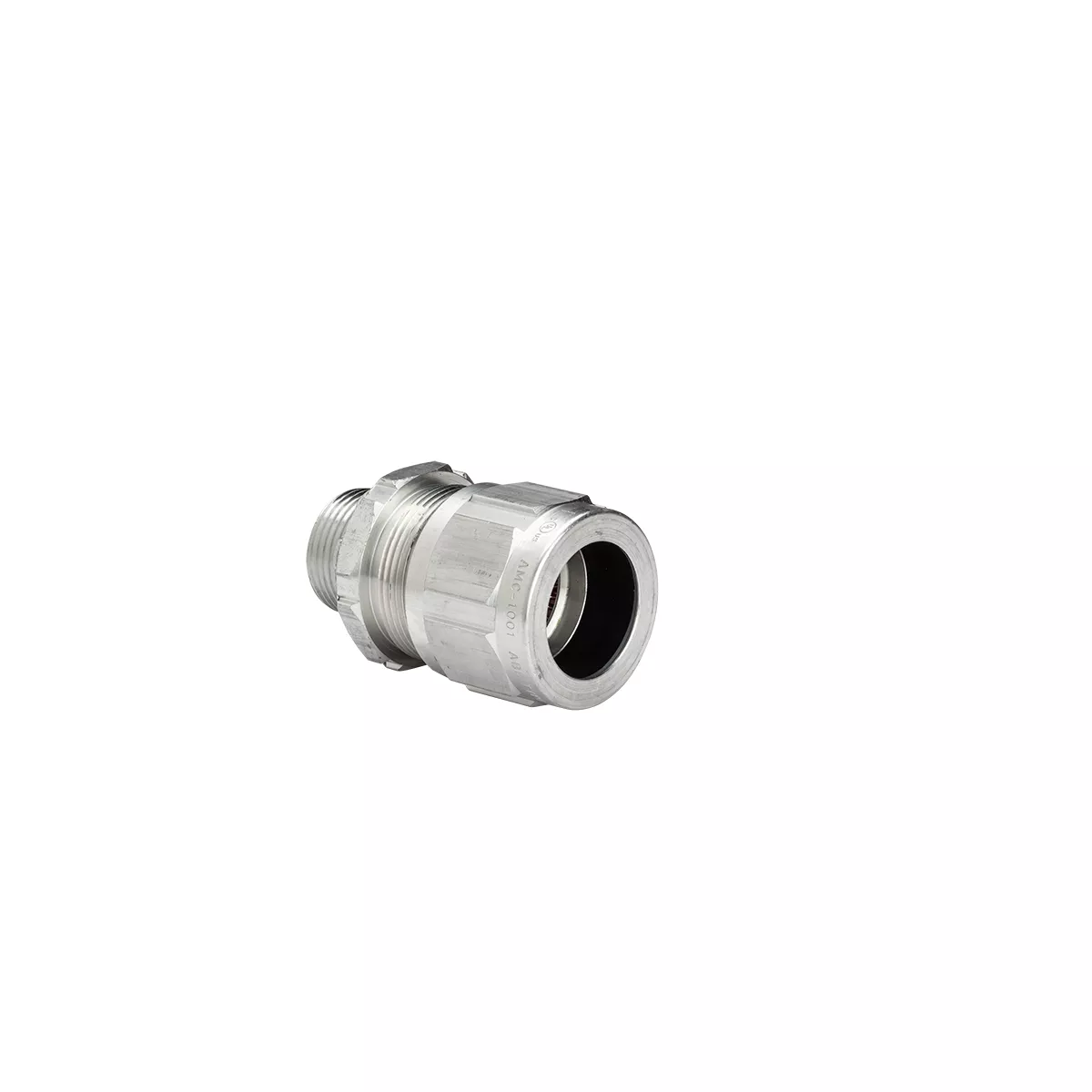

Aluminum fitting for metal clad and armored cables. Hub size of 1 inch. NPT Range over armour 0.760 / 1.120 inch.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
IBERVILLE
Item Name
Metal Clad Cable Fitting
Type
Metal Clad Cable Fittings
Trade Size
1 in
Length
82.17 mm
Connection
NPT
Diameter
52.58 mm
Material
Copperfree Aluminum
Cable Type
Metal Clad, Teck 90, ACWU90 /ACGWU90
Series/Model
AMC
Temperature Rating
-25 to 90 °C
For Use With
Type MC, Jacketed Interlocking Armor, Jacketed Corrugated Metal Clad, ACWU90/ACGWU90, AC90/ACG90, Teck 90
Includes
Locknut
Standards
UL514B/50E, CSA C22.2-18.3/-94.2- Wet and Dry Location, RoHS, Class I Div 2, Class II Div 2 and Class III location per NEC
Application
Oil and Gas, Chemical and Industrial Markets
UPC
786210235875
