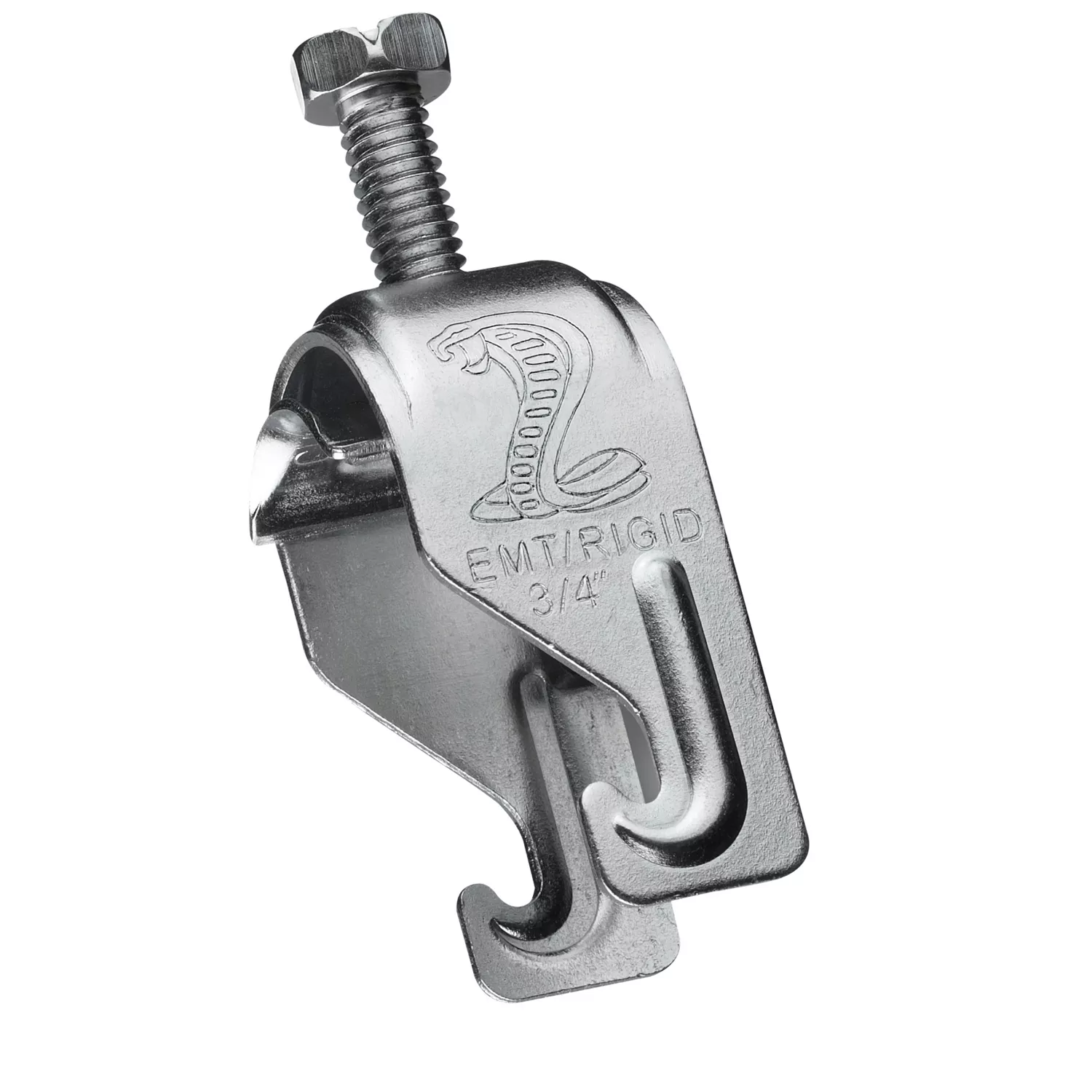

One-piece, heavy-duty construction ready to install right out of the box, no need to break apart and reassemble, no screws or bolts to drop. Heavy-duty hex bolt with multi-driver head, Robertson square, Phillips cross-recess and slot, provides a full range of installation options. Reconfigure wiring without complete disassembly. Remove cables easily without disturbing neighboring clamps. Parallel hook design keeps conduits and cable square with strut.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Superstrut®
Item Name
Cable and Pipe Clamp with Metal Tray
Type
1-Piece, Series 700, Heavy Duty
Trade Size
1 in
Clamping Range
1.1 – 1.4 in
Mounting
U-Profile
Material
Steel
Color/Finish
Galvanic/Electrolytic Zinc Plated Clamp, Galvanic/Electrolytic Zinc Plated Screw
Includes
Steel Screw
Standards
UL File Number E160899
Application
Attaches a Full Range of EMT, Rigid Conduit and Cable to Strut Channels
UPC
616013107027
Packages
