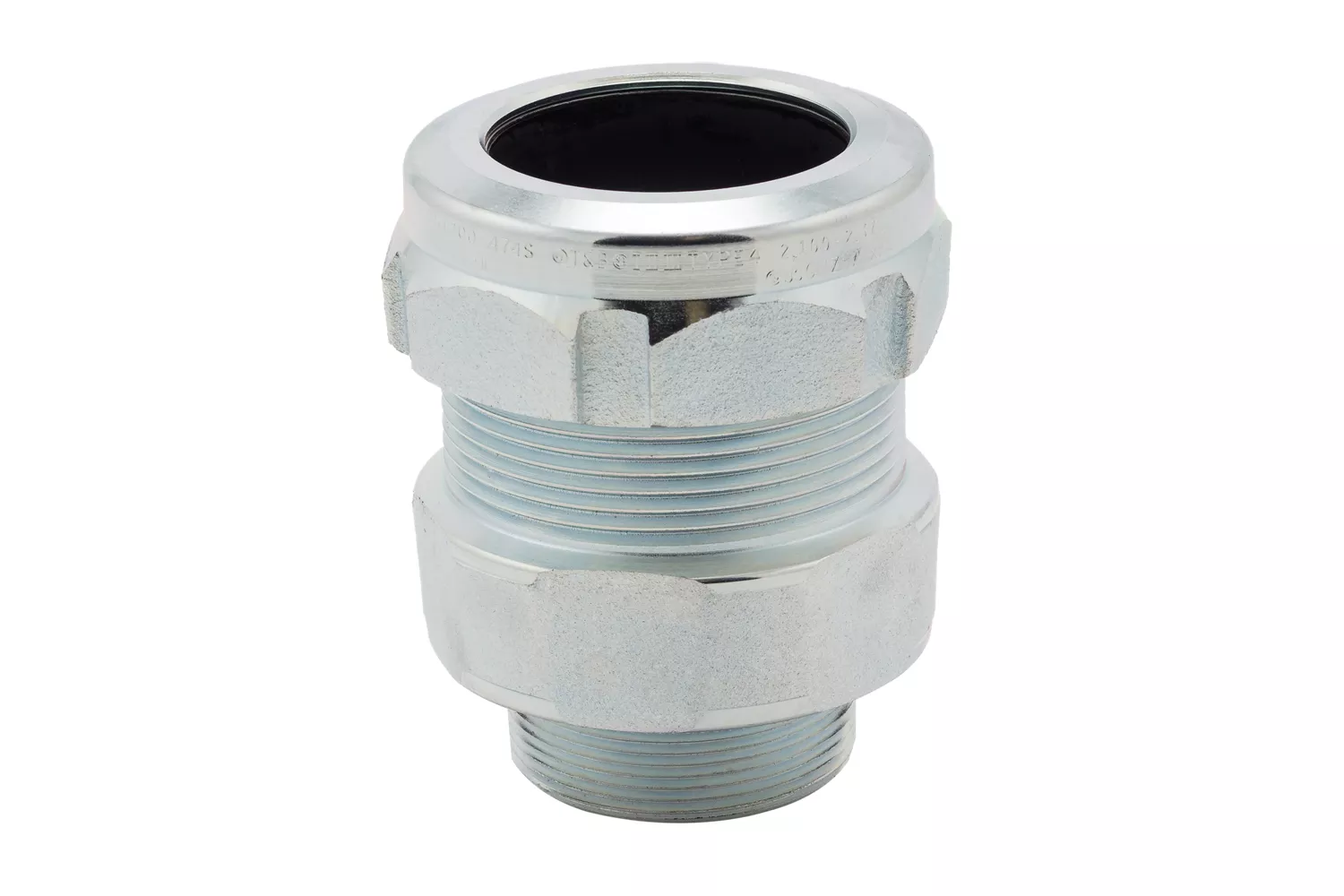

The T & B ST teck cable fitting is designed to accommodate a wide range of teck cable to insure a watertight seal between cable and enclosure, junction box, control and instrumentation panels in industrial applications. Made of compression ferrule with elastomer seal ring, a grounding spring insure prefect ground continuity. This fitting is machined from copper-free aluminium standard , steel (add to suffix S), stainless steel (add to suffix SS) or pvc coated (add to suffix PVC) for different applications and are UL-CSA approved.
A natural extension of the 10464 Series, the first STAR TECK cable fitting incorporated input from end-users in industry and was the first teck fitting to use a pop-on design requiring no disassembly.
Other unique features included a splined gland and gripping features.
The original STAR TECK fitting for teck and ACWU cable set the standard for ease of installation, quality engineering and safe, reliable terminations in challenging industrial environments.
The original STAR TECK fitting for teck and ACWU cable set the standard for ease of installation, quality engineering and safe, reliable terminations in challenging industrial environments.
Specifications
Brand Name
ABB
Sub Brand
Star Teck®
Item Name
Cable Gland
Type
Straight
Trade Size
2 in
Conductor Size
2.1 – 2-3/8 in
Thread Type
NPT
Material
Steel
Finish
Silver/Electro Zinc Plated
Includes
Sealing Ring
Standards
UL File Number E38947, CSA File Number 23086, 4484
UPC
786210879598
