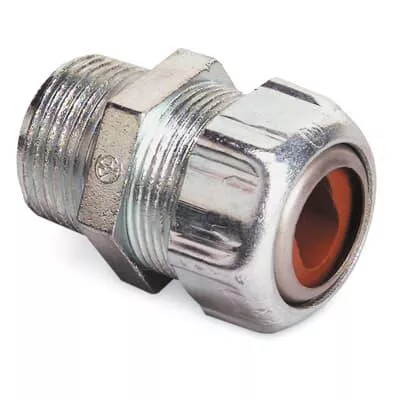

Watertight fittings for oval cables – A design with two tapers inside the body a slow one and a fast one permits the stocking of fewer fittings for varied cable sizes and allows maximum take-up. The tapered neoprene bushings are resistant to oil, sunlight, and water. Hex gland and body take the same wrench opening and a stainless steel slip ring prevents cable from twisting as gland ring is being tightened. Threads on the body are tapered for water sealing.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Item Name
Watertight Connector
Type
Straight
Trade Size
2 in
Conductor Size
0.85 x 1.55 – 1.062 x 1.765 in
Connection
NPT
Material
Die-Cast Zinc
Color/Finish
Metallic/Galvanic/Electrolytic Zinc Plated
Includes
Sealing Ring
Standards
UL E15170 Listed, CSA 4484 Certified
Application
To Connect Underground Feeder Cables to a Box or an Enclosure
UPC
786210024493
Packages
