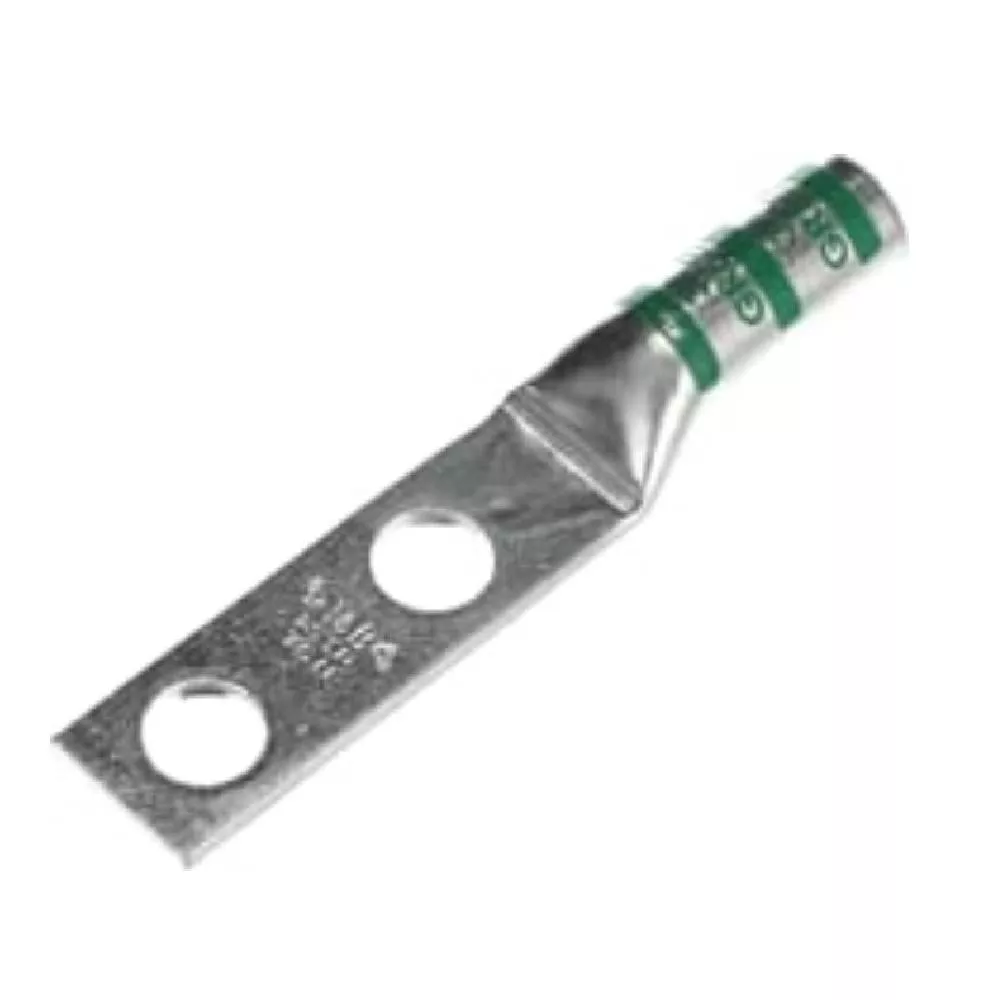

Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size 1 AWG, 3/8 Inch Bolt Size, 1 Inch Hole Spacing, Tin Plated, Die Color Code Green, Die Code 37.
Specifications
| Brand Name | ABB | Sub Brand | Color-Keyed® |
| Item Name | Compression Lug with Sight Hole | Type | Long Barrel |
| Conductor Size | 1 AWG | Number of Holes | 2 |
| Stud Size | 3/8 in | Barrel Diameter | 0.47 in |
| Tongue Size | 1.98 in L x 0.67 in W x 0.11 in T | Overall Length | 3.3 in |
| Color Code | Green | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Long, Straight |
| Peep Hole | Yes | Die Code | 37 |
| Stud Hole Spacing | 1 in | Finish | Electro Tin Plated |
| For Use With | Copper Conductor | Standards | UL Listed, CSA Certified |
| UPC | 786210739762 |
