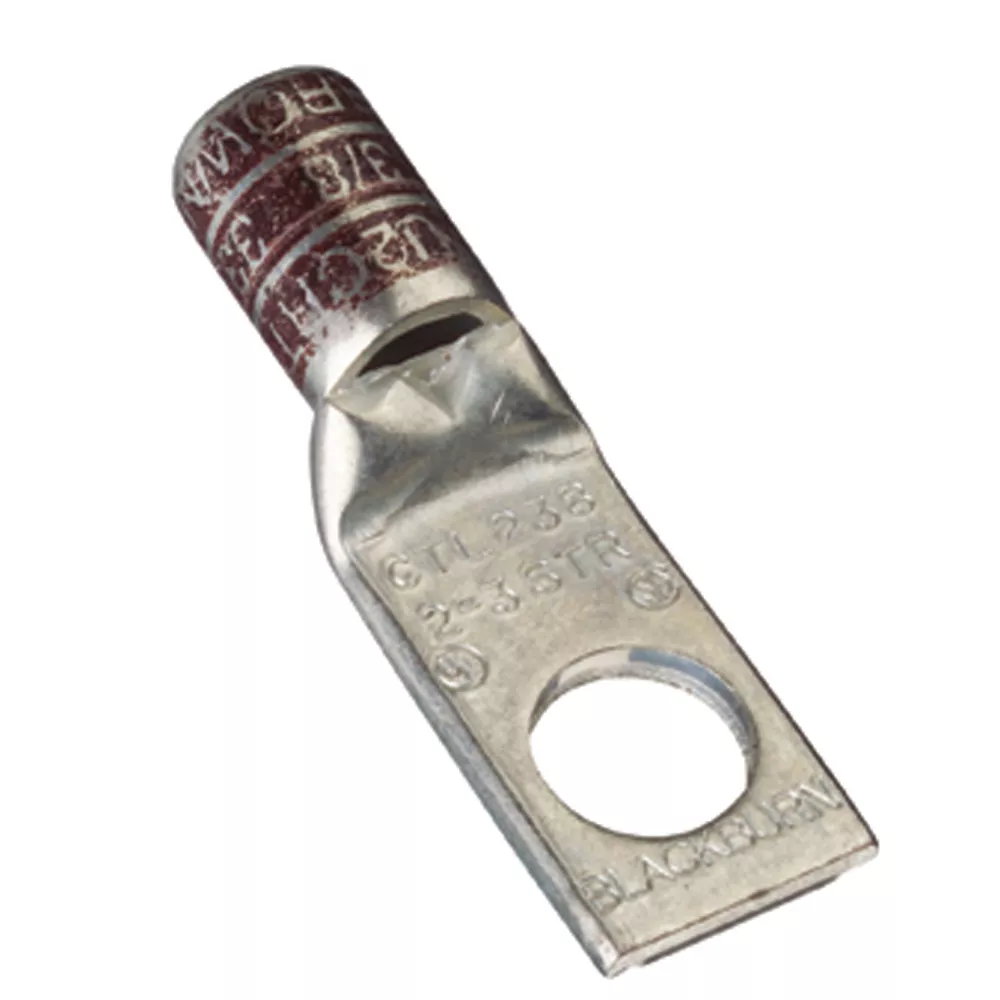

Copper One-Hole Lug, Short Barrel, Max 35kV, 2 Str. Wire, 3/8 Bolt Size, Tin Plated, Die Color Code Brown.PRODUCT FEATURES:- Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance.- Specifically chamfered barrel for ease of installation.- Color-coded for matching die identification.
Specifications
| Brand Name | ABB | Sub Brand | Blackburn® |
| Item Name | Compression Lug | Type | Standard Barrel |
| Conductor Size | 2 AWG Stranded | Number of Holes | 1 |
| Stud Size | 3/8 in | Barrel Length | 19/32 in |
| Tongue Size | 29/32 in L x 9/16 in W x 3/32 in T | Overall Length | 1-3/4 in |
| Color Code | Brown | Material | Copper |
| Series/Model | CTL | Voltage Rating | 35000 V |
| Barrel Type | Short | Tongue Type | Straight |
| Finish | Tin Plated | Standards | UL File Number E9809, CSA Certified |
| Application | For Copper Conductors | UPC | 783786131785 |
