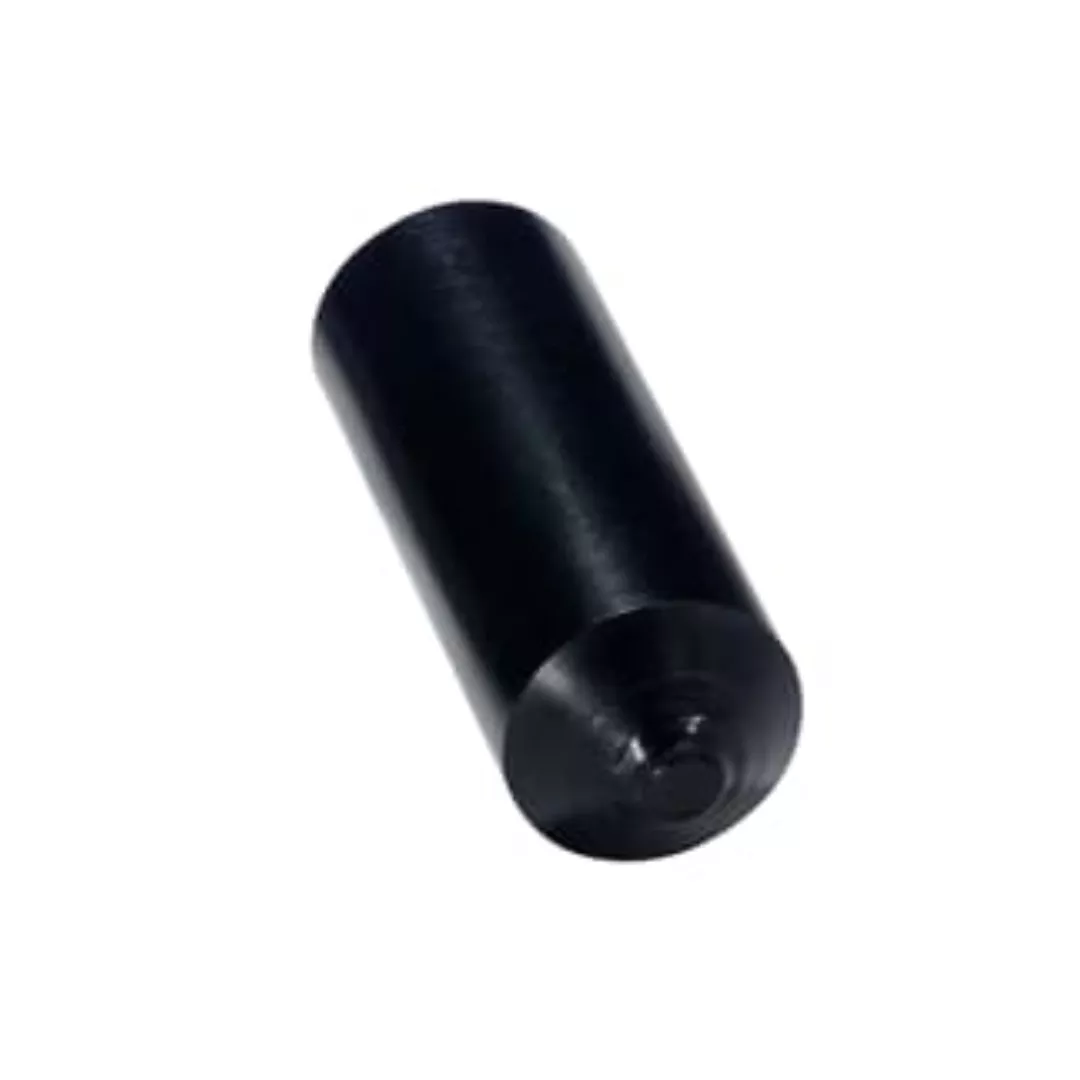

Shrink-Kon™ heat-shrinkable end cap provides effective method for sealing cable ends, pipe conduit etc. Extra thickness at the tip of the end cap prevents sharp ends of the cable from puncturing the seal. Flame retardant, rated from 600/1000V, 90 degrees continuous use. Resistant to common fluids and solvents, adhesive liner provides complete environmental protection and insulation.
Made or assembled in Canada.
Specifications
Brand Name
ABB
Sub Brand
Shrink-Kon®
Item Name
Heat Shrinkable End Cap
Type
Heavy Wall
Voltage Rating
600V
Conductor Size
42.404 – 85.021 mm²
Shrink Ratio
3:1
Expandable Inner Diameter
27.94 mm
Recovered Inner Diameter
8.89 mm
Overall Length
3 in
Color
Black
Environmental Conditions
UL94 V-0 Flammability
UPC
786210878669
