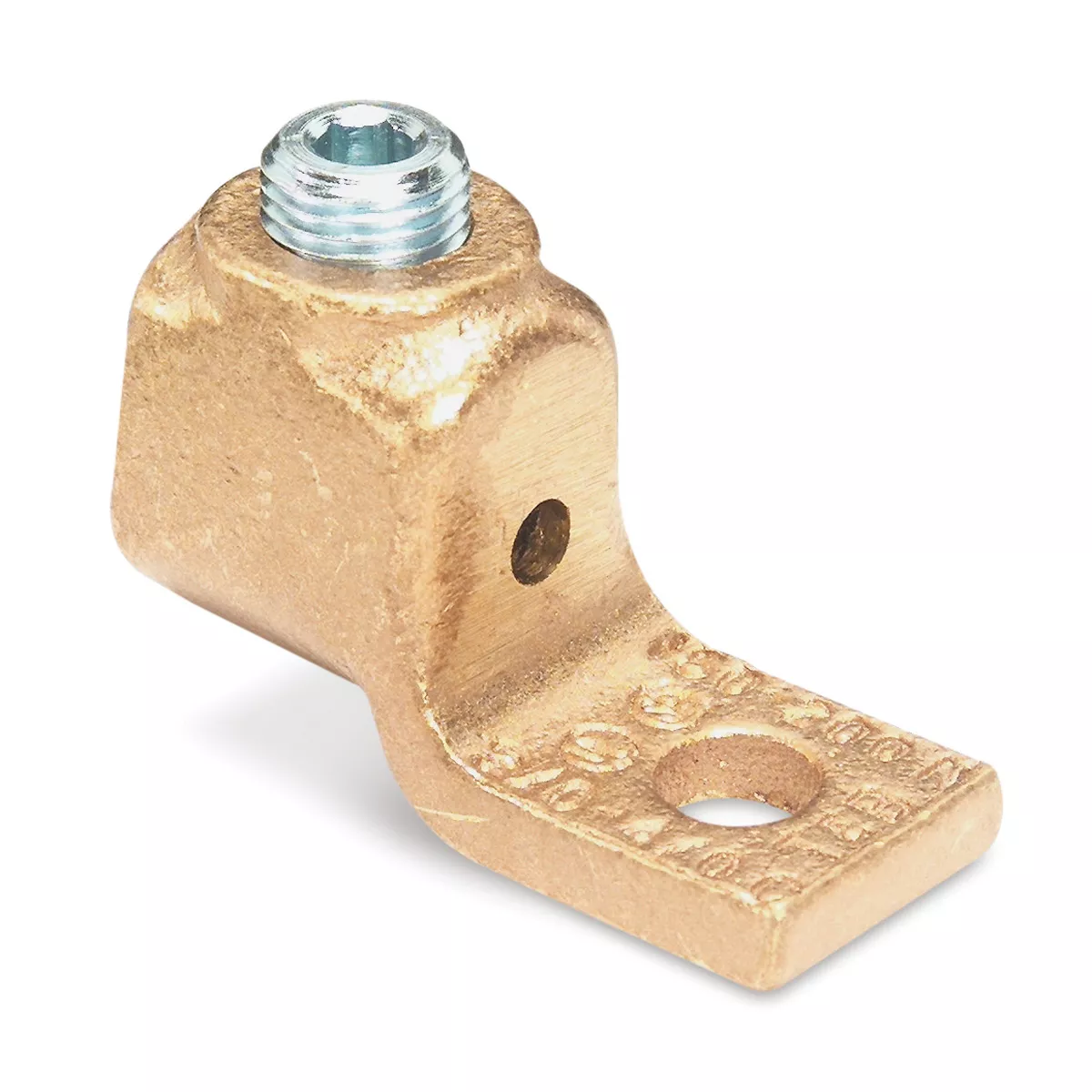

LOCKTITE® one-hole lug are easily installed with key wrench. Saddle and cable socket make direct, all-around, low-resistance contact with cable. Convenient peephole permits easy inspection.
Specifications
| Brand Name | ABB | Sub Brand | Blackburn®, Locktite® |
| Item Name | Mechanical Lug | Type | Locktite Connectors |
| Conductor Type | Copper | Conductor Size | 4-1 AWG |
| Number of Bolt Holes | 1 | Material | Copper |
| Bolt Size | 1/4 in | Tongue Size | 13/16 in L x 5/8 in W x 7/32 in T |
| Voltage Rating | 600 V | Mounting Hole Size | 1/4 in |
| Finish | Tin Plated | Dimensions | 1-5/8 in L x 1 in H |
| Includes | Hex Socket Screw | Standards | UL 9809 Listed, CSA Certified |
| Application | For Copper Conductors | UPC | 786210310077 |
