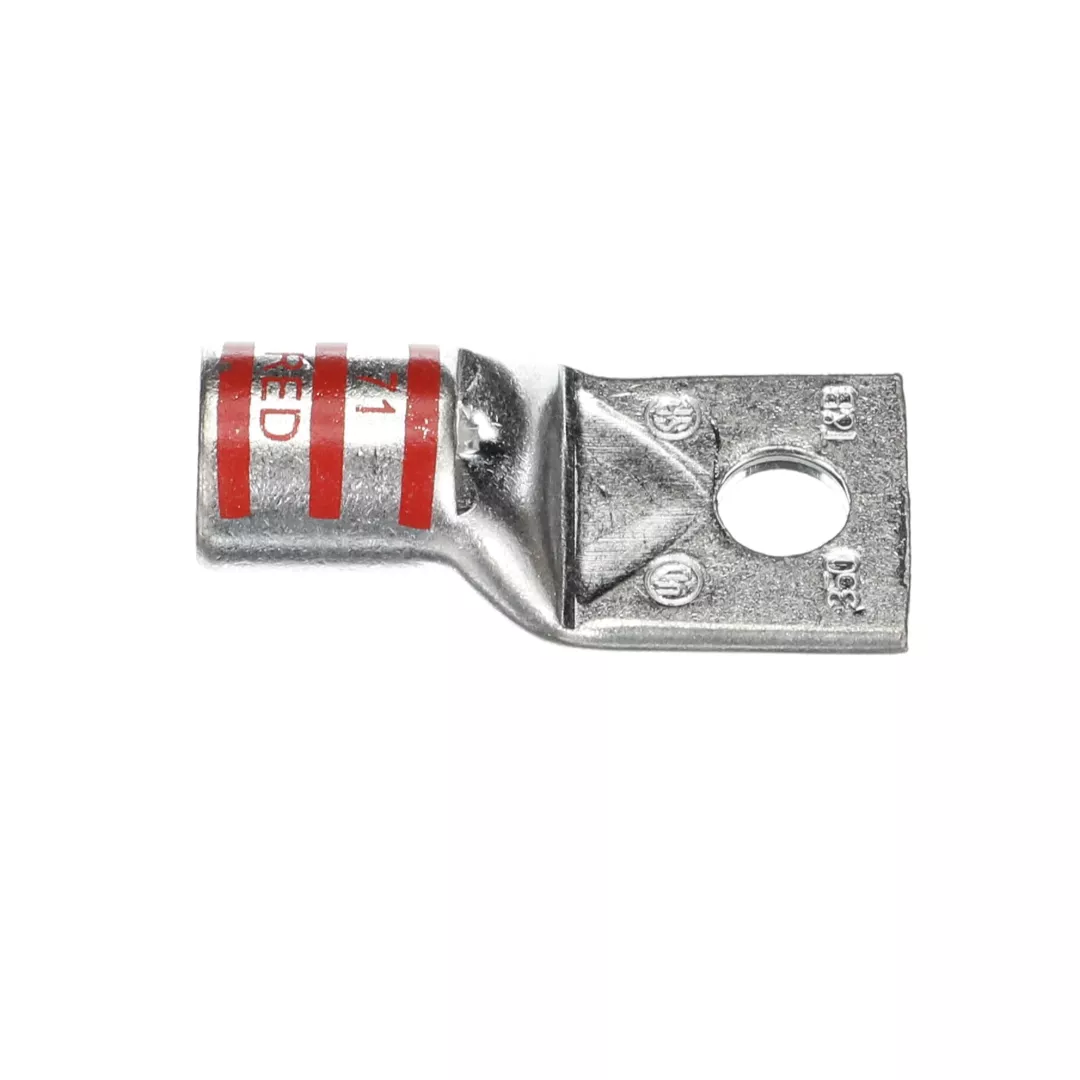

Color-Keyed® one hole lug with standard barrel is a compression connector for copper conductors. Made of high-conductivity wrought copper with electro-tin plate. 1/2 inch bolt is used and the lug is used for 600 V to 35 kV applications.
Specifications
| Brand Name | ABB | Sub Brand | Color-Keyed® |
| Item Name | Compression Lug with Sight Hole | Type | Standard Barrel |
| Conductor Size | 350 kcmil | Number of Holes | 1 |
| Stud Size | 1/2 in | Barrel Length | Standard |
| Color Code | Red | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Standard, Straight |
| Finish | Tin Plated | Standards | UL File Number E9809 |
| UPC | 786210541150 |
