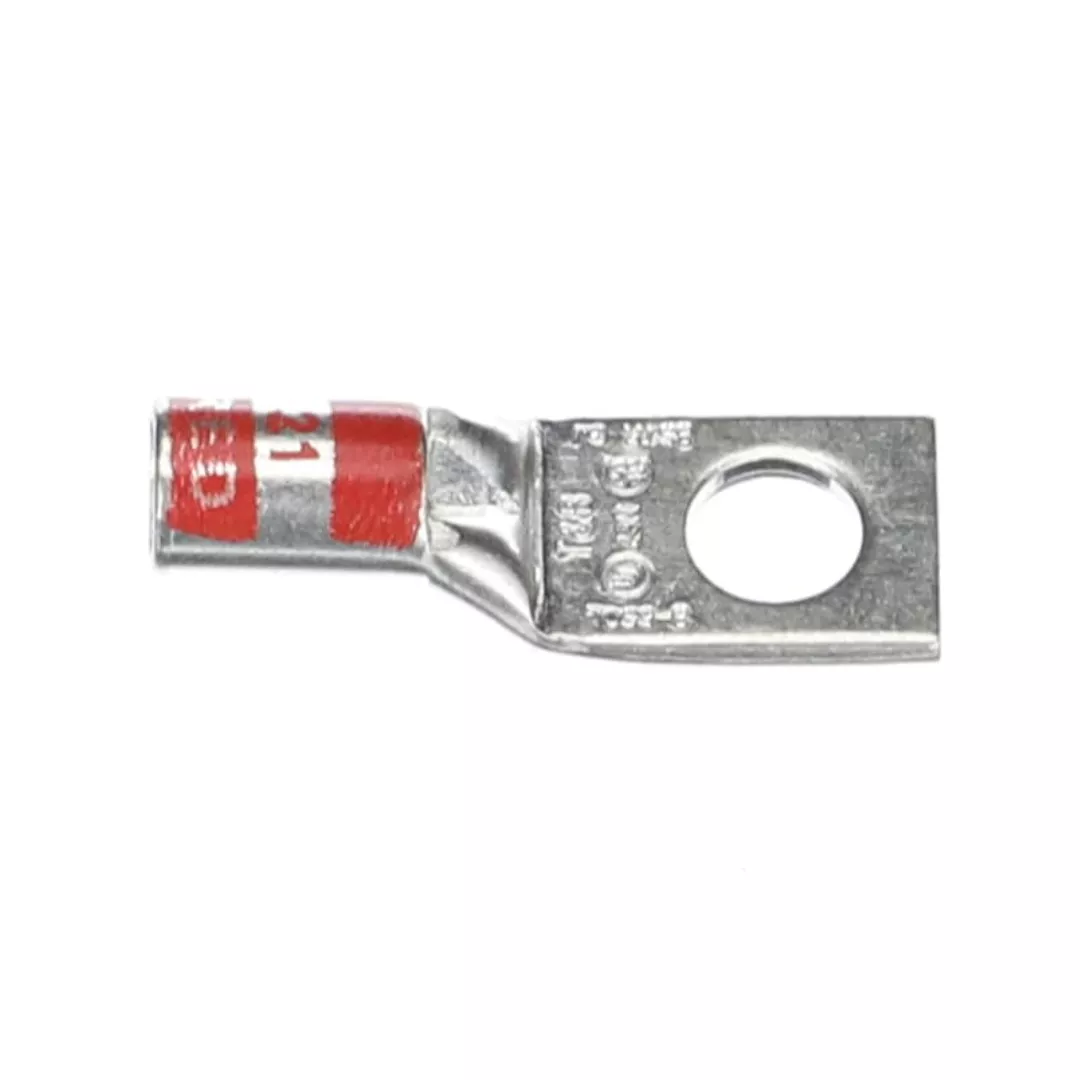

Color-Keyed® one hole lug with standard barrel is a compression connector for copper conductors. Made of high-conductivity wrought copper with electro-tin plate.
Specifications
| Brand Name | ABB | Sub Brand | Color-Keyed® |
| Item Name | Compression Lug with Sight Hole | Type | Screwless, Standard |
| Conductor Size | 8 AWG | Number of Holes | 1 |
| Stud Size | 1/4 in | Barrel Length | Standard |
| Color Code | Red | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Standard, Straight |
| Finish | Tin Plated | Standards | UL File Number E9809 |
| UPC | 786210541303 |
