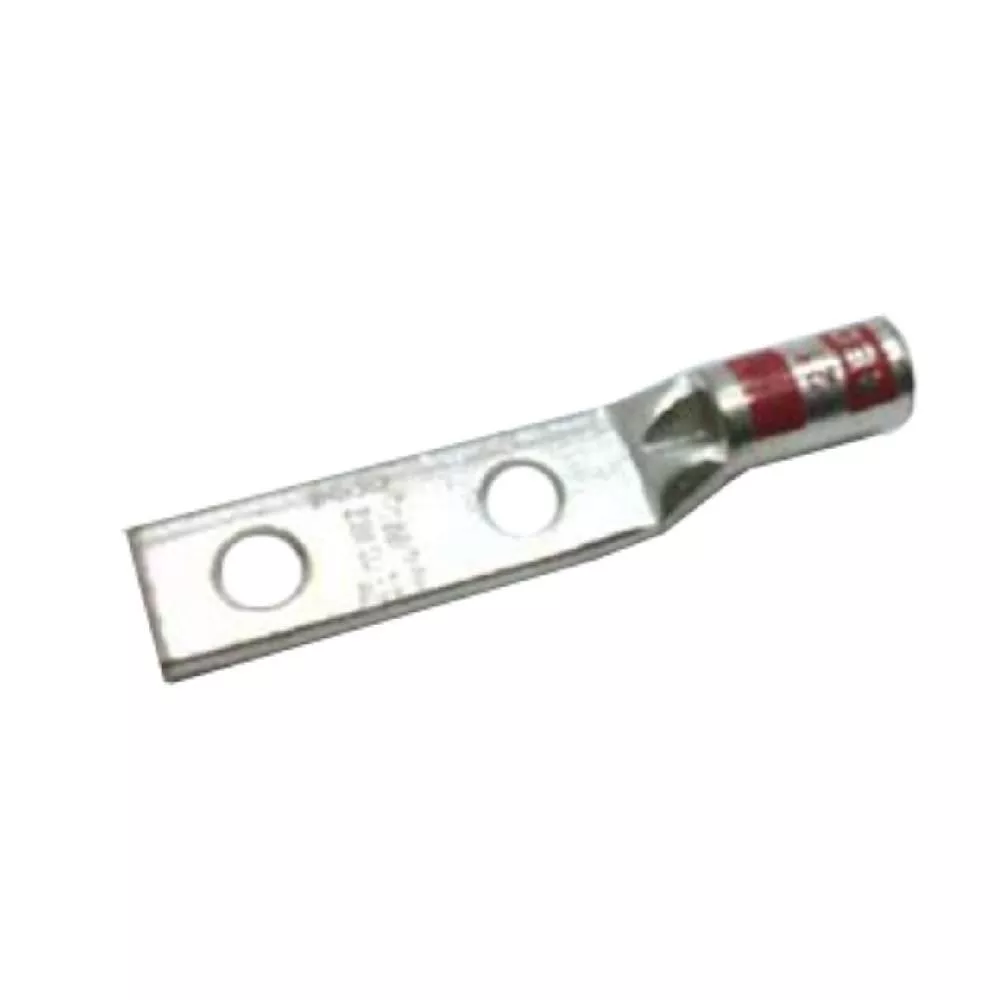

COLOR-KEYED® Compression lug for copper conductor. Made of high-conductivity wrought copper with electro-tin plated. Certified to 600V and recommended up to 35kV.
Specifications
| Brand Name | ABB | Sub Brand | Color-Keyed® |
| Item Name | Compression Lug | Type | Straight, Non-Insulated, Ring |
| Conductor Size | 8 AWG | Number of Holes | 2 |
| Stud Size | 10 | Barrel Length | Standard |
| Color Code | Red | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Standard |
| Terminal Connection | Slender Flange | Finish | Tin Plated |
| Standards | UL E9809 | UPC | 786210542041 |
