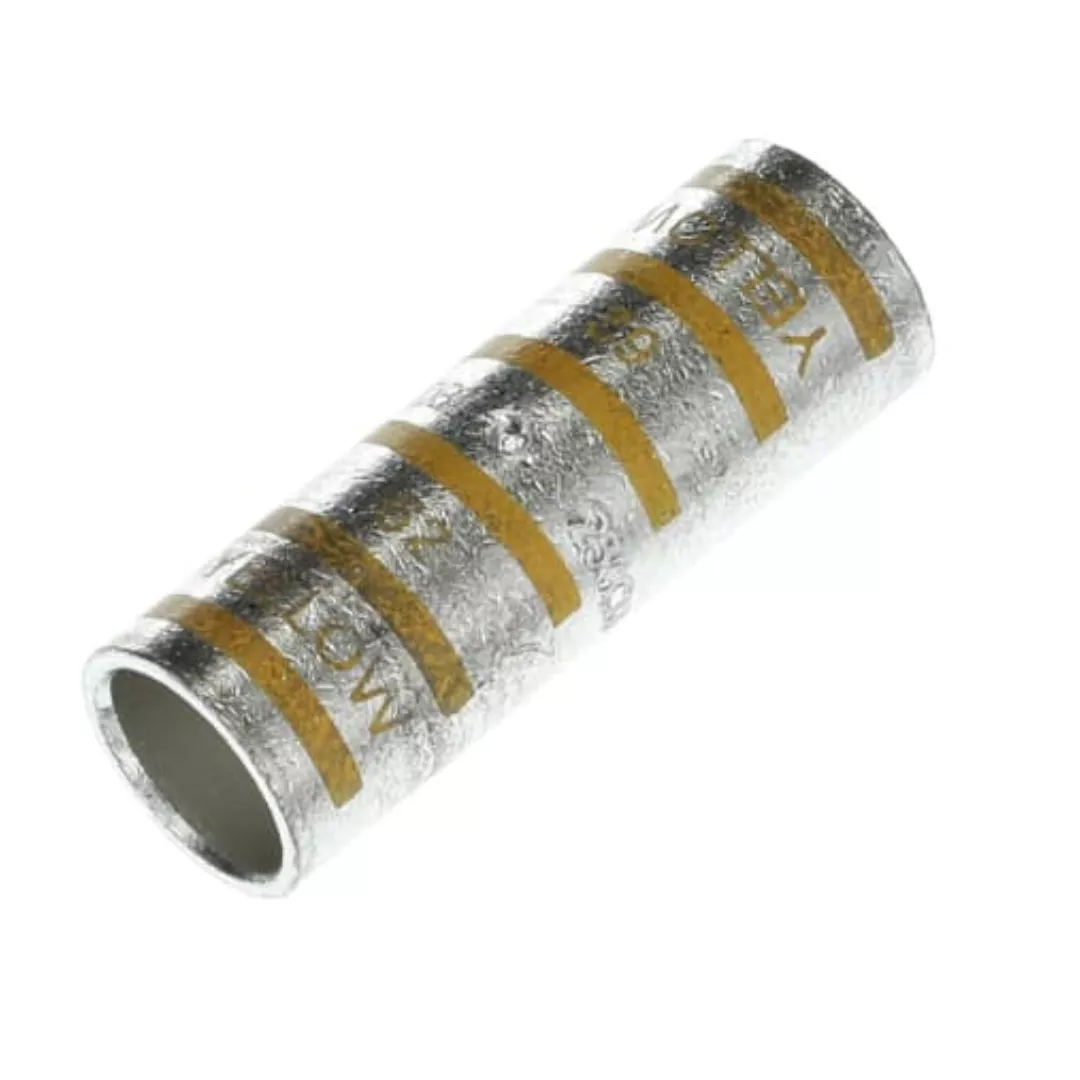

Two-way splice connector with high-conductivity wrought copper and electro-tin plated. Standard barrel certified to 600 V and recommended up to 35 kV. It provide high-pullout values and are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
Specifications
| Brand Name | ABB | Sub Brand | Color-Keyed® |
| Item Name | Non Insulated Butt Splice Connector | Voltage Rating | 600 V – 35 kV |
| Conductor Size | 250 kcmil | Type | 2 Way |
| Series/Model | Standard Version | Contact Material | Copper |
| Color | Yellow | Finish | Tin Plated |
| Standards | UL File Number E9809 | Application | Applications certified to 600 V and recommended up to 35 kV¥ |
| UPC | 786210545134 |
