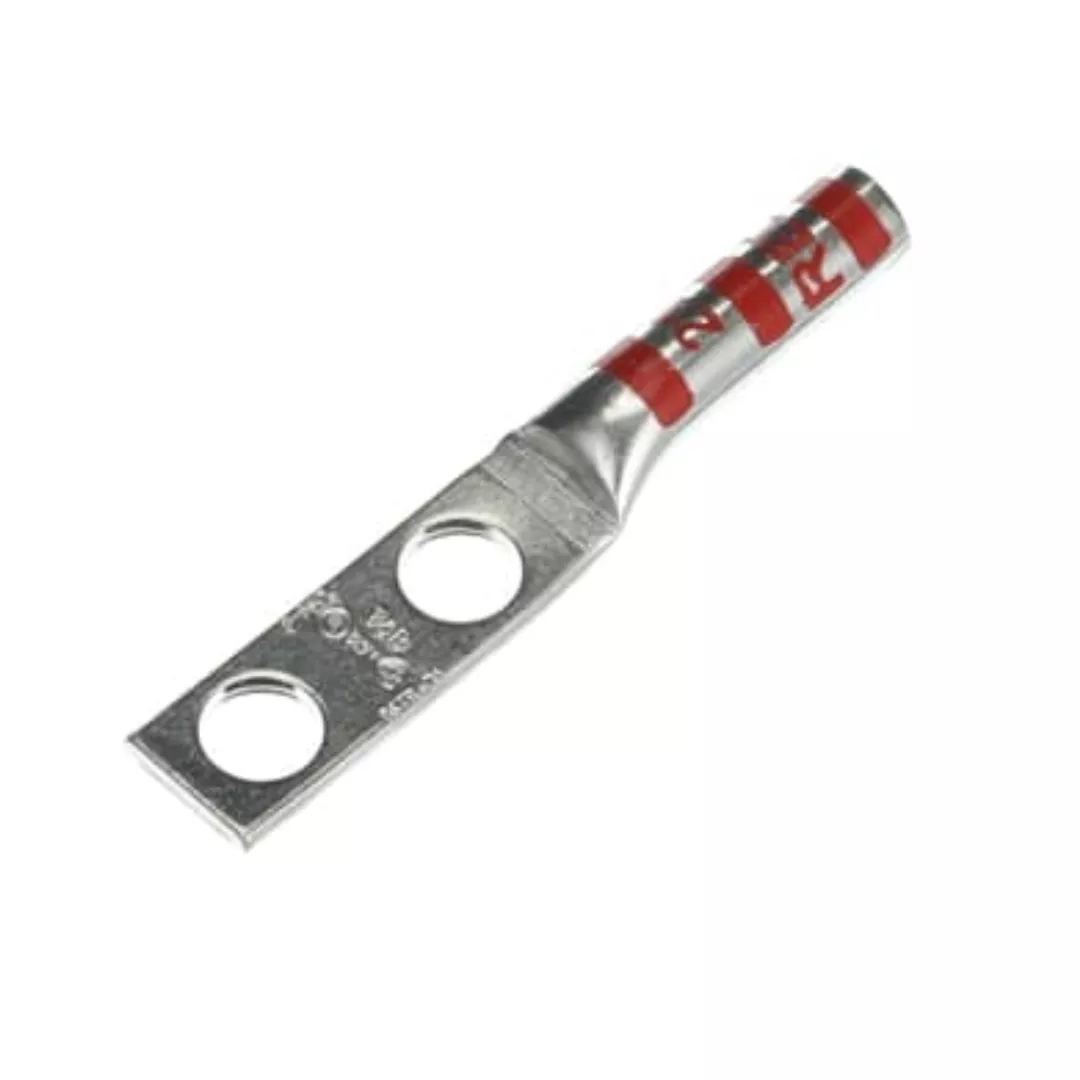

Color-Keyed® two hole lug with long barrel is a compression connector for copper conductors. Made of high-conductivity wrought copper with electro-tin plate. 1/4 inch bolt is used and the lug is used for 600 V to 35 kV applications.
Specifications
| Brand Name | ABB | Sub Brand | Color-Keyed® |
| Item Name | Compression Lug | Type | 90°, Long Bushed |
| Conductor Size | 8 AWG | Number of Holes | 2 |
| Stud Size | 1/4 in | Barrel Length | Long |
| Color Code | Red | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Long, Straight |
| Die Code | 21 | Finish | Tin Plated |
| Standards | UL File Number E9809 | UPC | 786210897967 |
