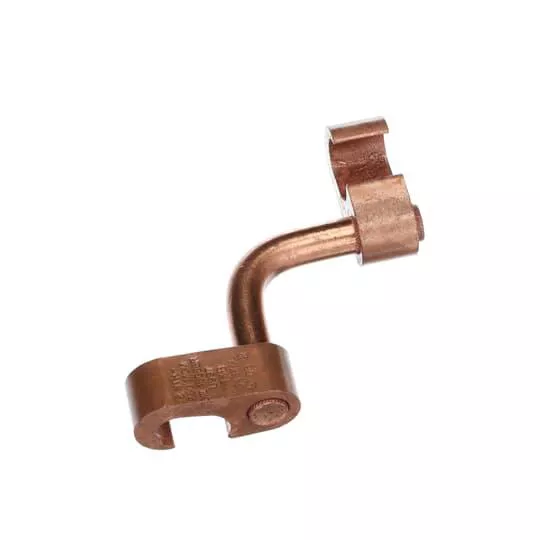

Compression ground grid connector acceptable for direct burial.
Specifications
| Brand Name | ABB | Sub Brand | Blackburn®, E-Z-Ground® |
| Item Name | Ground Grid Connector | Type | Compression, Figure 6-6, 90°, Non-Insulated |
| Conductor Type | Copper | Conductor Size | 2 AWG Stranded – 250 kcmil (Element A and B) |
| Rod Size | 1/2 – 5/8 in (Element B to Ground Rod) | Material | High Conductivity Copper |
| Dimensions | 7/8 in L x 3/4 in W | Standards | UL Listed, CSA Certified, IEEE 837 |
| Application | For Direct Burial | UPC | 786210179865 |
