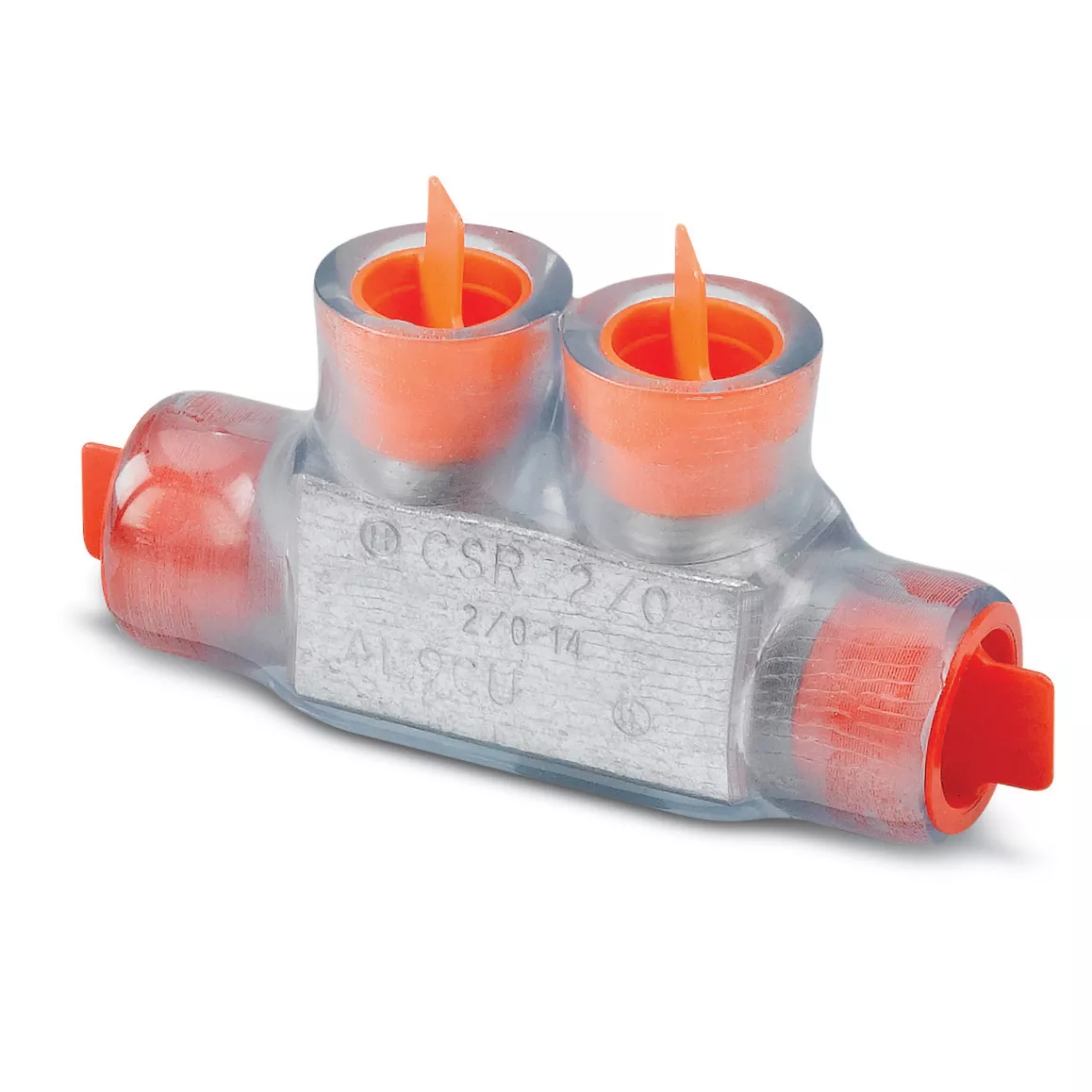

Aluminum Multi-Tap Encapsulated Splice One-Way Configuration – 2 Outlets, Wire Range 14-2/0, Screw Size 3/8 Hex.
Specifications
| Brand Name | ABB | Sub Brand | Blackburn®, Homac® |
| Item Name | Encapsulated Multi-Tap Connector | Type | 1-Way, 2-Outlet, Insulated |
| Voltage Rating | 600 V | Conductor Size | 2/0-14 AWG |
| Material | Aluminum, PVC Insulation | Color/Finish | Clear |
| Connection Type | Screw | Stud Size | 3/8 in |
| Dimensions | 2-3/8 in L x 7/8 in W x 1-3/8 in H | Temperature Rating | 90 °C |
| For Use With | Copper or Aluminum Cable | Standards | UL File No. E9809 Listed, ANSI C119.4 Approved |
| UPC | 783786715305 |
