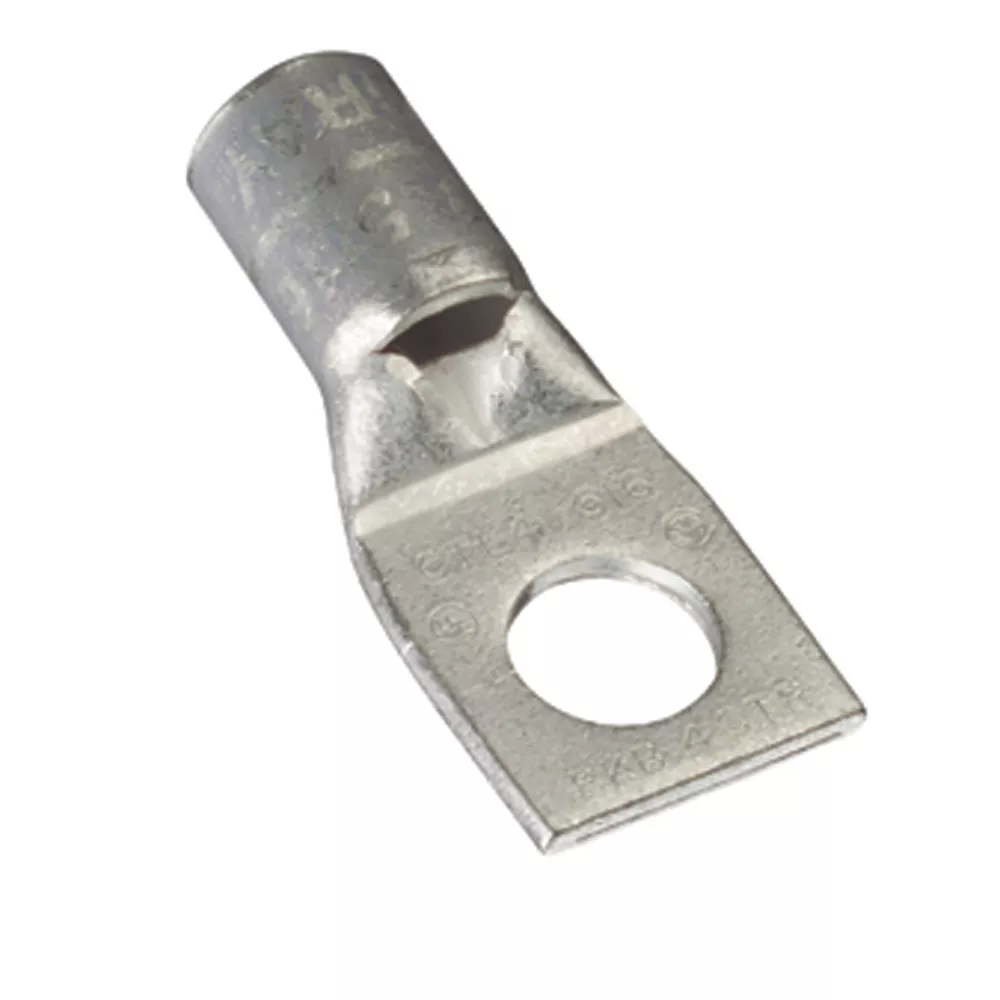

BLACKBURN® Colour coded type CTL copper lug. For use with copper conductors: AWG stranded, ¿exible cable, welding cable and portable cord. Specially designed for industrial and building applications. Specially chamfered barrel for ease of installation. Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used.
Specifications
| Brand Name | ABB | Sub Brand | Blackburn® |
| Item Name | Compression Lug | Type | Straight, Non-Insulated |
| Conductor Size | 4 AWG Stranded | Number of Holes | 1 |
| Stud Size | 1/4 in | Barrel Length | Short |
| Color Code | Gray | Material | Copper |
| Barrel Type | Short | Terminal Connection | Slender Flange |
| Finish | Tin Plated | Standards | UL E9809 |
| UPC | 783786131730 |
