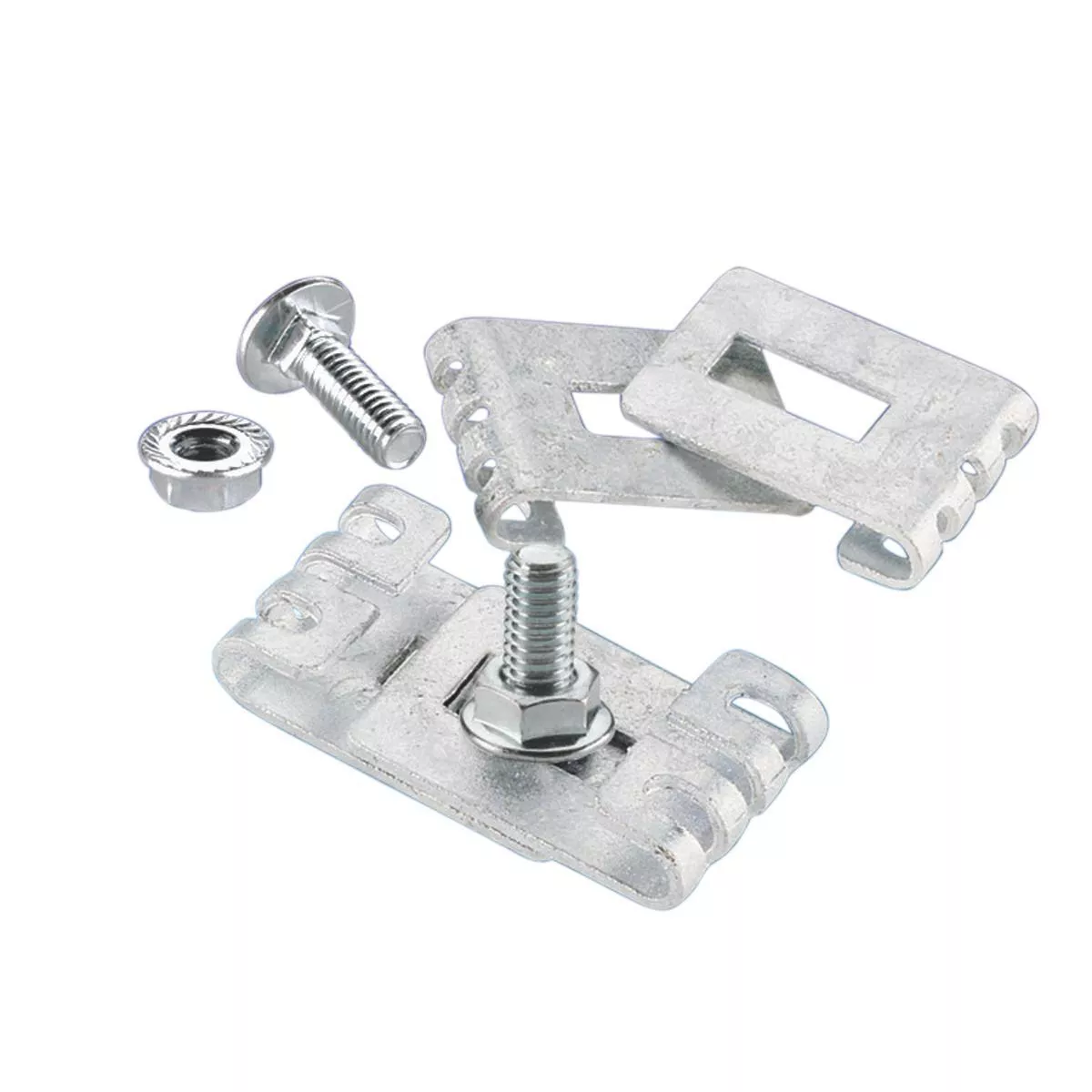

ExpressTray® adjustable splice constructed of electro galvanized steel. 0.905 inch width and 1.653 to 2.215 inch length. Used to construct angles or bends with a radius. Installed on the inside radius, this splice adjusts up to 1/2 inch and is ideally suited for any application where adjustment may be necessary. Compatible with all tray profiles.
Specifications
| Brand Name | ABB | Sub Brand | ExpressTray® |
| Item Name | Splice Plate | Material | Steel |
| Finish | Electro Galvanized | Type | Adjustable Length |
| Dimensions | 1.653 – 2-1/8 in L x 0.905 in W | Application | To Construct Angles or Bends with a Radius and for Ease of Installation When Field Producing Bends |
| UPC | 626490995147 |
