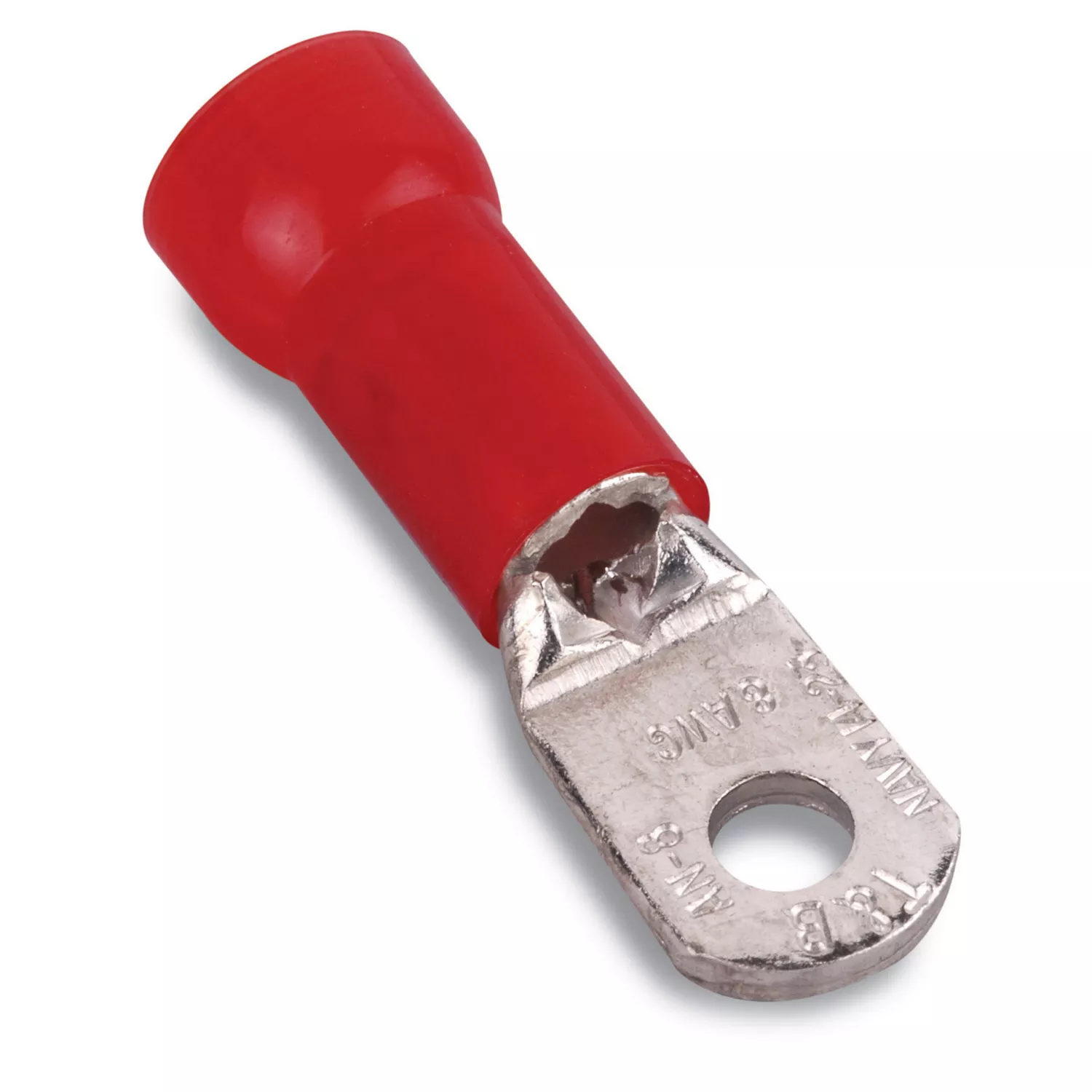

Sta-Kon® Ring terminal can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire. Constructed of electrolytic copper for high conductivity.
Specifications
| Brand Name | ABB | Sub Brand | Sta-Kon® |
| Item Name | Insulated Ring Terminal | Type | Long Sleeve |
| Conductor Size | 8 AWG | Stud Size | 1/4 in |
| Voltage Rating | 600 V | Insulation Material | Nylon |
| Material | Copper | Finish | Tin Plated |
| Color | Red | Barrel Type | Brazed/Overlapping Seam, Funnel |
| Temperature Rating | 105 degrees C | Width | 1.3 in |
| For Use With | Round Conductors | Standards | UL File Number E9809 |
| UPC | 786210872025 |
