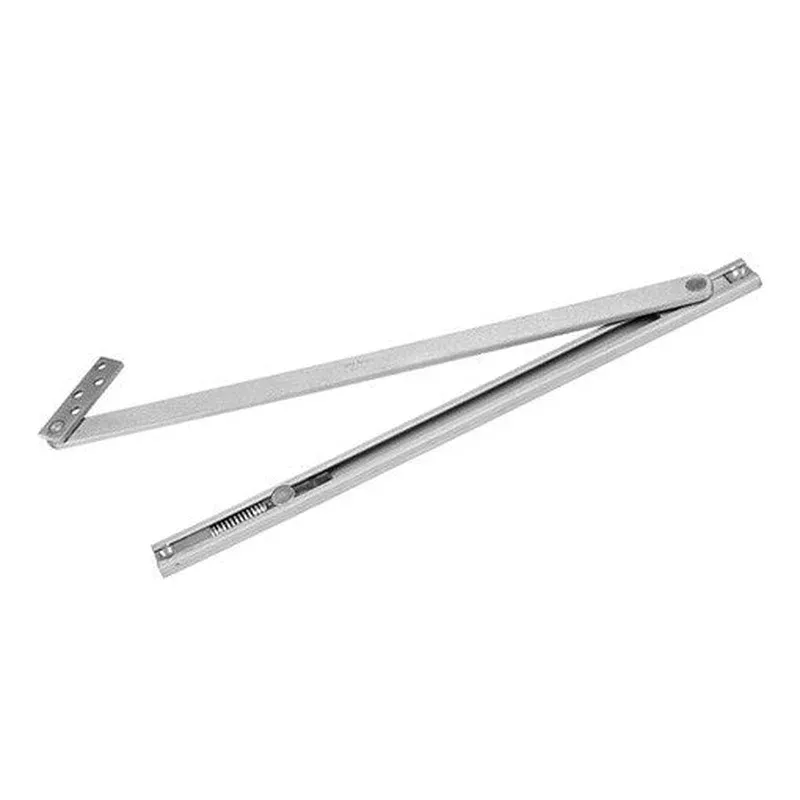

The ABH 1000SL Series Slim Line is designed for aluminum store front doors.
Stop Function – Door stops at selected degree of opening.
Overhead holders and stops are used to prevent unnecessary damage to the door, frame, wall and other door hardware by limiting the degree of door swing. They are installed at the top of a door opening; therefore, out of the general reach and not a tripping hazard. Whether for commercial or residential application, the use of overhead holders and stops extends the life of the opening and other hardware.
This ABH Mfg. product is similar to products from Rixson, Sargent, Dorma, Glynn Johnson, and Rockwood. See the Cross Reference Chart in the ABH Catalog (under Downloads, below) for more information.
This item normally ships out within 2 weeks.
Features
- Concealed mount
- Heavy duty
- Stop and hold-open functions available
- Single or double acting doors
- Non-handed
- For Interior or exterior use on frequent traffic and heavy weight doors
- Standard installation from 85 to 110 of opening (5 increments)
- Shock absorbing spring provides 3 to 5 cushion before dead-stop
- 1-3/4″ minimum door thickness
- UL Listed as Miscellaneous Fired Door Accessories for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours (Stop Function Only)
- Base material for jamb brackets, arms and channels is stainless steel
- Average weight per unit = 5 lbs.
Finishes
US32D Satin Stainless Steel
US10 Satin Bronze
US10B Dark Bronze
US26D Satin Chrome Plated
US4 Satin Brass
US26 Bright Chrome Plated
US3 Bright Brass
US32 Bright Stainless Steel
S1 Painted Aluminum
S2 Painted Brass (to match US4)
S3 Painted Bronze (to match US10)
S4 Painted Black
S5 Painted Dark Bronze (to match US10B)
S8 Painted White
Available Options
CALL FOR PRICING
- All Stainless Steel Components
- Lead-lined
- Less Spring
- Security Fasteners (Specify Door & Frame Material)
- Contact us if the dimension, hardware or specifications differ from what is shown on the template or if additional hardware is being used at the top of the door. A custom template and/or unit may be required
Downloads
- ABH Overhead Holders & Stops Catalog (PDF)
- ABH 1000SL Series Template (PDF)
Installation Challenge Level
ChallengingRecommended for Experienced Installers.
