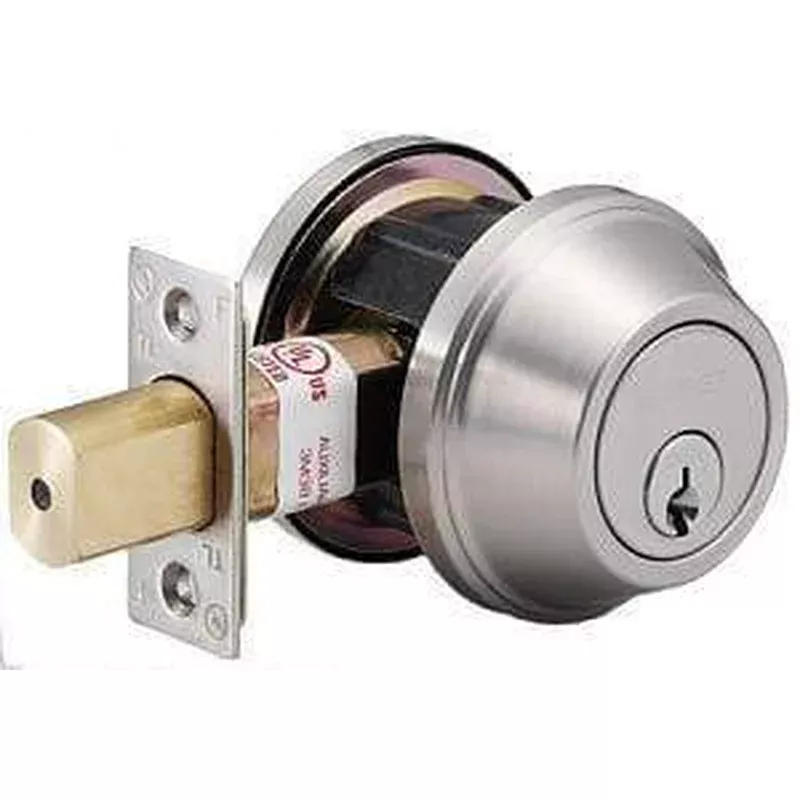

Advantage LU Series | Grade 2 Single Deadbolt | US32D
Applications For offices, schools, hospitals, apartments, hotel/motel and other public buildings.
-
Door Ranges 1-3/8″ ~ 2″ door thickness (35 ~ 51 mm).
-
Backset 2-3/4″(70 mm) standard or 2-3/8″ (60 mm).
-
Strike 1-1/8″ x 2-3/4 x 5/64″ rectangular, square corner.
-
Latchbolt 1″ throw solid brass bolt with hardened steel rod insert. 1″ x 2-1/4″ faceplate mortise deadbolt.
-
ANSI Grade II Standards Meets or exceeds requirement of BHMA/ANSI A156.2.
-
Keying 6-pin tumbler cylinder, 2 keys per lock. Keying job is available upon request.
-
Features Schlage SC4 keyway
-
Fast and easy installation
Availability-7 days
