Product Description

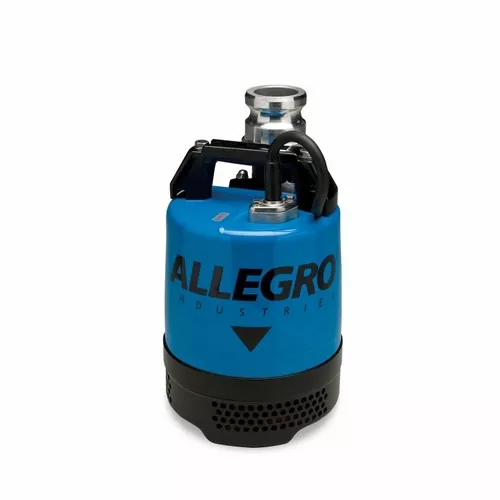

Allegro 9404-02 Standard Dewatering PumpOur Standard Dewatering Pump is excellent for manholes, vaults, construction sites, and all dewatering needs. Offers top discharging while allowing continuous operation in low water levels. Includes synthetic rubber wear parts, vortex impeller, and fire hose quick connect fitting. Easy disassembly with one 12mm box/socket wrench.FEATURES:Impeller: Simi-Vortex, urethane rubber with ethylene propylenerubber casingSeal: Double inside mechanical seals with silicon carbidefaces (top and bottom)Shaft: 403 stainless steel sleeveMotor: Continuous air filled, copper wound motor with class B insulationProtection: Built in thermal and amperage sensing, protector prevents failure due to overloadingor accidental run dry conditionsBearings: Double-shielded, permanently lubricated, high temperature C3 ball bearings rated forB-10 life of 60,000 hoursDischarge: Top, flow-through design with solids handling capabilityConnection: Fire hose-style quick connect fittings (cam-lock design)Elastomers: NBR (Nitril Buna Rubber)SPECIFICATIONS:Motor: 2/3 HP (0.4 kW) 3600 RPM60 Hz 115V AC Single PhasePower Cable: Submersible 32’ (9.75 m)Performance Range: 63.4 GPM (0.24 m3/min)Head: 39.5 ft. (12 m)Maximum Water Temp: 104° F (40° C)CONSTRUCTION:Casing: Ethylene propylene rubberImpeller: Urethane rubberShaft: 403 stainless steelMotor Frame: Aluminum alloyFasteners: 304 stainless steel25x17x1030lbs
