Features Uses large diameter gears, making it much more durable than conventional products. It is designed to allow machining by holding down the fulcrum part of the rotation of the tip tool with your fingers, allowing for efficient work with reduced vibration. By replacing the collet chuck attached to the tip, tip tools with shaft diameters of 2.34/ 3.0/ 3.175 can be used. The shafted end tool can be reliably chucked by tightening with a wrench. Equipped with a quick change function that allows you to quickly change attachments and motors. Improve work efficiency for chamfering, deburring, polishing, and cutting.

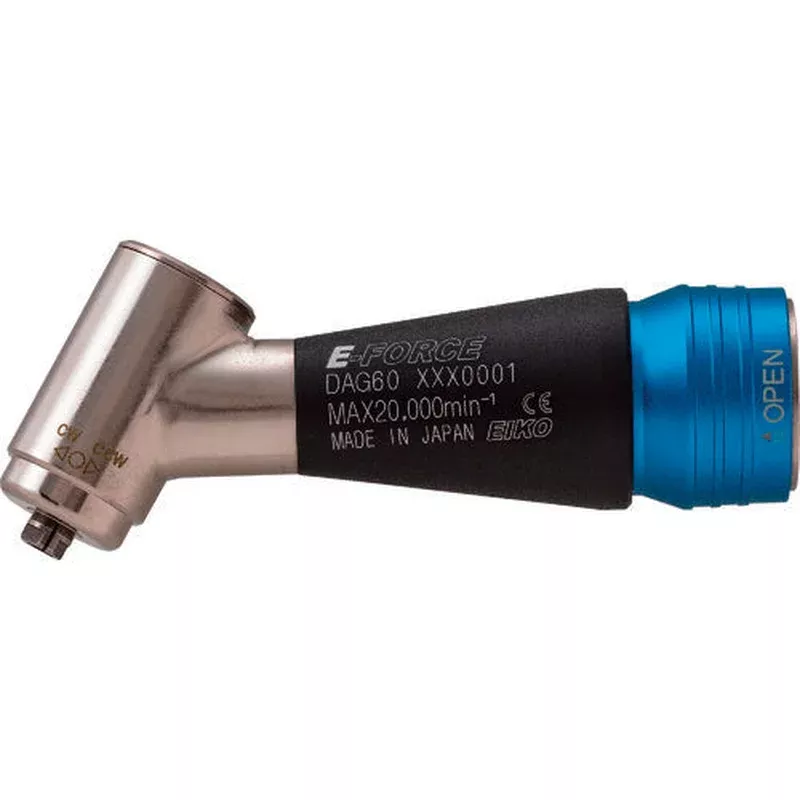

Use Attachment for precision electric micro grinder E-FORCE. Recommended work: Chamfering, deburring, polishing, and cutting.
Specification No-load rotation speed (min [[-1st power]]): 1000 to 20000 Total length (mm): 80.9 Chuck inner diameter (mm): 3 Applicable motor: 20k Applicable collet (mm): 2.34 , 3.0, 3.175
Specification2 Maximum rotational speed (m): 20000rp Continuous rotational speed (m): 20000rp Usable rotational speed (m): 1000~20000rp Compatible collets: 2.34/ 3.0/ 3.175
Material/Finish
Set contents/accessories 2 types of spanners Collet chuck 3.0Rubber pad for disc: 10 x 1 piece 20 x 1 piece 30 x 1 piece Disc: 11180 x 5 pieces 11600 x 5 pieces 21180 x 5 pieces 21600 5 sheets 31180 5 sheets 31600 5 sheets
caution
