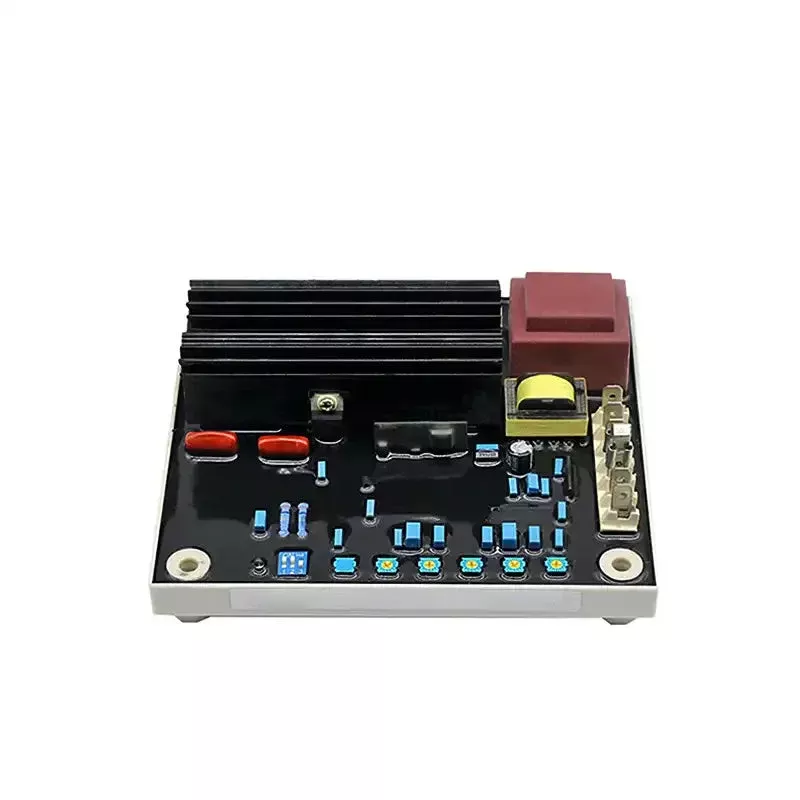

AutomaticVoltage Regulator AVR EA08A for Generator Genset
Part Number:EA08A
Details:Product DescriptionThe regulation accuracy is <0.5%220/380/440 VAC brushless generator is suitable for useThree-phase voltage detection15 ADC large output currentSelection of 50/60 Hz by jumper copperWith low-frequency protection and slow voltage build functionVoltage, stability, and low-frequency protection settings can be adjustedWith HRC fuse protectionTechnical Parameter
Voltage: 220/380/440 VAC three-phase three wireFrequency: 50/60 Hz, selection by jumper copper
Voltage: 100~300 VAC single phase two-wire
Voltage:Voltage: 240 VAC maximum 90 VDCCurrent: continuous 15A, discontinuous for 10 seconds 20AResistance: Minimum 4 Ohm @ 35 VDC<0.5% (engine speed variation within 4%)The residual voltage of the AVR input terminal is more than 5 VACWhen using a 1 K Ohm 1 watt potentiometer, it is + 15%Maximum 8 watt2 secondsThe voltage drift is 0.03% at each degree of C changeThe inflection point of the 60 Hz system is 55 HzThe inflection point of a 50 Hz system is 45 HzOperating temperature: -40~65 degrees CStorage temperature: -40~85 degrees CRelative humidity: less than 95%Vibration: 3G @ 100~2 kHzVOLT: regulating voltageSTAB: regulation stabilityU/F: adjust the low-frequency protection inflection point value
