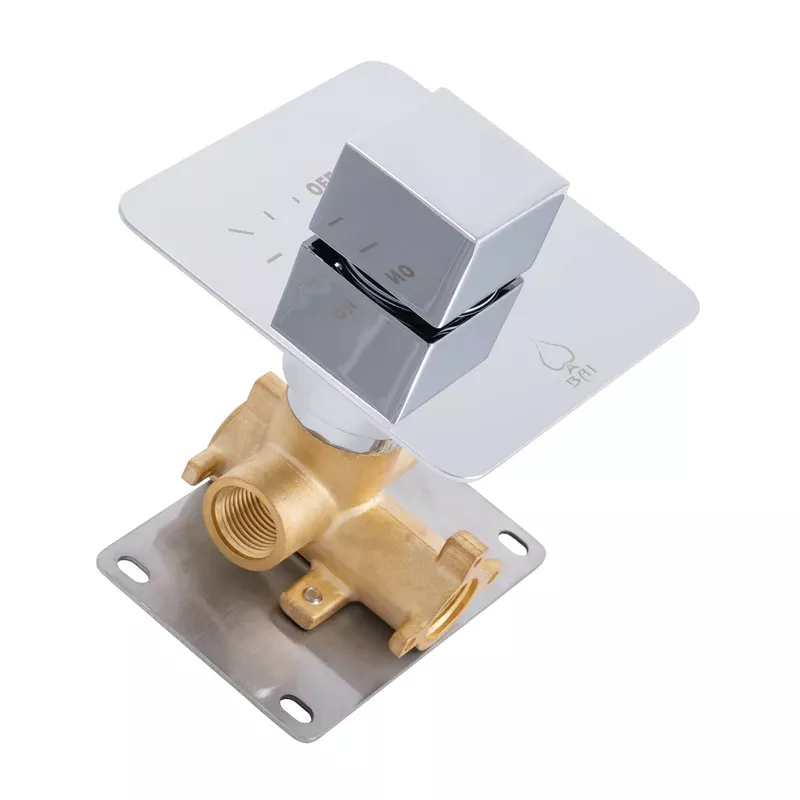

BAI 0140 Concealed 1 Function ON/OFF Shower Valve in Polished Chrome Finish

Concealed Stainless Steel ON/OFF Valve

Compatible with all BAI Shower Heads, Body Sprays and Spouts.

This valve does not control the temperature!

Compatible Thermostatic Valve: BAI 0142

Features:

• Polished chrome finish with a square knob

• Concealed brass body construction, stainless steel faceplate

• Regulates pressure and delivers a generous flow rate

• Supports only 1 function

• Designed to fit into standard

  3

  .5″ frame

  wall

• One year manufacturer warranty

Specifications:

• Standard 1/2″ NPT Inlet

• Faceplate Dimensions: 4.7″ x 4.7″

• Flow Rate: 7.2 GPM (@40PSI)

• Net Weight: 2.6 lbs

• Gross Weight: 3.6 lbs

• Box Size: 9.0″ x 8.0″ x 6.5″

• cUPC Certified

• UPC 813509025449

• SKU VA-0140-SQ-PC

• ON/OFF Valve
• Faceplate Trim with Knob
• Temporary Protective Cap
• Installation Screws
• Installation Diagram

Downloads:

• Technical Drawings

• Installation Diagram

• Cartridge Replacement

Optional Accessories:

• Shower Heads & Arms
• Handheld Showers and Holders
• Body Sprays / Jets
