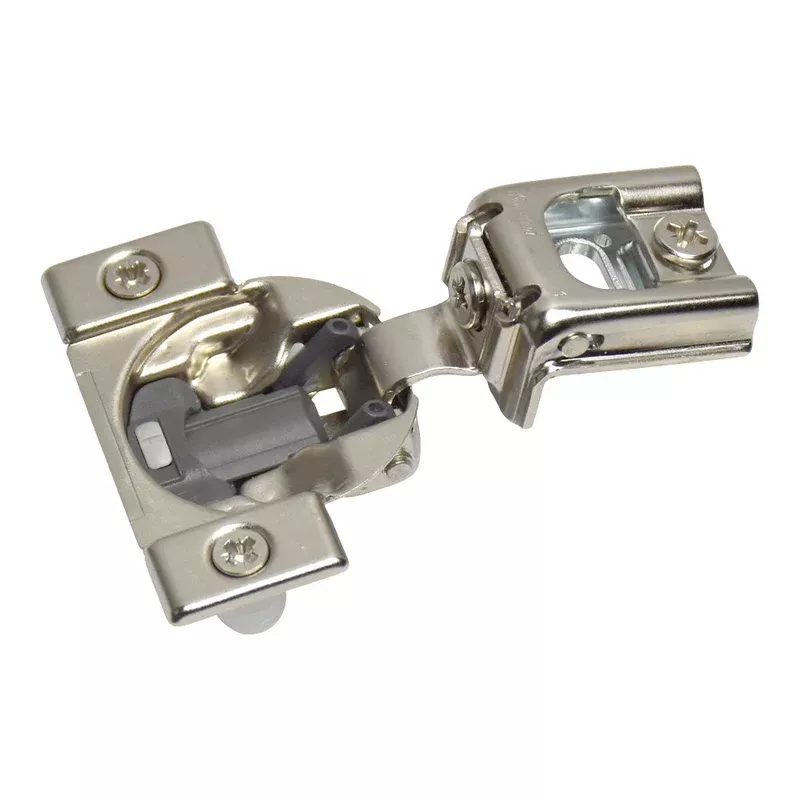

- Compact one piece European hinge with built-in Blumotion.
Features
- Blum’s Blumotion soft close mechanism which allows the cabinet door to close softly without banging.
- A standard cup depth of 1/2″ (~13mm).
- A deactivation switch that can be used for small or light doors (flip the switch on one of the hinges to lessen the dampening action).
- An overload safety feature that protects the soft close mechanism if the door is slammed.
- 6-way adjustable after installation.
Replacements
- When changing hinges on your door, you should change all of the hinges. Mixing different types or brands of hinges will cause door binding problems.
- This hinge may be used to replace any compact one piece European hinge that is installed with the following:
- the same overlay dimension
- a bore distance of 1/8″ (the bore distance is the distance between the edge of the door and the edge of the cup drilled in the back of the door)
- a cup diameter of 35mm (1-3/8″)
- a matching cup depth of 7/16″
Notes
- Screws for the mounting plate side are not included but can be found below as a related product. Only one 10 pan head screw is needed per hinge. We sell these screws in packs of three.
- The mounting plate side of the hinge may differ slightly from what is shown in the image depending on the overlay of the hinge.
- Hinge comes with dowels and screws for the door side of the hinge. Dowels may be discarded if not needed.
Accessories
- Cover Caps: These are attached to the mounting plate side of the hinge to give it more of a clean appearance.
